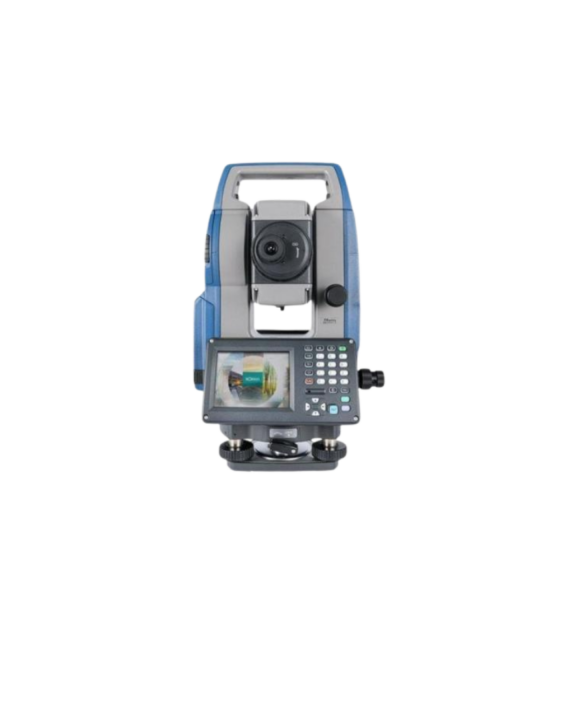

Sokkia FX201 Total Station

Magnification / Resolving power: 30x / 2.5"

Others: Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m),

Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels

Angle measurement

Display resolution: 0.5" / 1" (0.0001 / 0.0002gon, 0.002 / 0.005mil)

Accuracy (ISO 17123-3:2001): 1"

Dual-axis compensator / Collimation compensation: Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) /

Collimation compensation available

Distance measurement

Laser output: Reflectorless mode: Class 3R / Prism/sheet mode: Class 1

Measuring range (under average conditions*2)

Reflectorless: 0.3 to 800m (2,620ft.) / Under good conditions*6 : 1,000m (3,280ft.)

Reflective sheet: RS90N-K: 1.3 ～ 500m、 RS50N-K: 1.3 ～ 300m 、 RS10N-K: 1.3 ～ 100m

Mini prism: 1.3 to 500m (1,640ft.)

One prism: 1.3 to 5,000m (4.3 to 16,400ft.) / Under good conditions *6: 1.3 to 6,000m (19,680ft.)

Display resolution

Fine/Rapid measurement: 0.0001m(0.001ft. / 1/16in.) / 0.001m (0.005ft. / 1/8in.) (selectable)

Tracking/Road measurement: 0.001m (0.005ft. / 1/8in.) / 0.01m (0.1ft. / 1/2in.) (selectable)

Measuring time: Fine: 0.9s (initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking: 0.4s (initial 1.3s)

OS, Interface and Data management

Operating system: Windows Embedded Compact7

Display / Keyboard: 3.5inch, Transmissive TFT QVGA color LCD with LED backlight,

Touch screen, Automatic brightness control / 29 keys with backlight

Control panel location: On both faces (Face 2 is only touch screen display )

Trigger key: On right instrument support

Guide light: Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)*2

Laser-pointer: Coaxial red laser using EDM beam

Calendar / clock function: Yes

Levels:

Graphic: 6"(inner circle)

Circular level: 10" / 2mm

Optical plummet: Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom

Laser plummet (option): Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product

Tribrach: Detachable

Dust and water protection: IP65 (IEC 60529:2001)

Operating temperature: -20 to 60° C (-4 to 140°F)

Size (with handle): 191(W)x190(D)x348(H)mm

Instrument height:

192.5mm from tribrach mounting surface

236mm +5/-3mm from tibrach bottom

Weight with battery & tribrach: Approx. 5.7kg (12.3 lb.)
