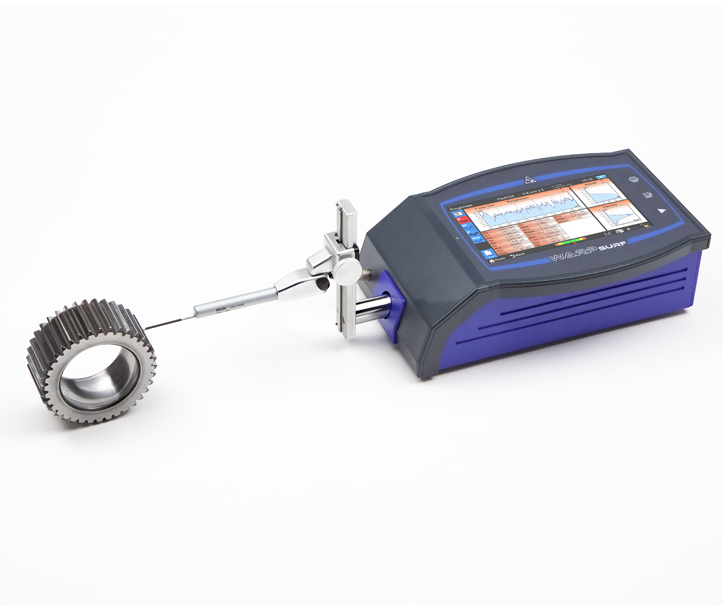

SM Metrology WARPsurf Portable roughness tester (±1500μm)

Measurement range: ±1500μm

Resolution: 0,0001 µm - (0,1nm)

Cut-off lenght: 0,08 - 0,25 - 0,8 - 2,5 - 8 mm

Cut-off number: Selectable from 1 to 20 (1 to 6 for 8 mm cut-off)

Traverse lenght: Up to 60 mm

Pick up: Inductive, it can be rotated of 90' for lateral measurements and interchangeable styluses

Measurement parameters: 81 roughness parameters

Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, RΔq, RΔa, Rmax, Rδc, Rmr, Rmr(c), RPc, RLo, Rlr, Rzjis, RHSC, R3z, hp, Ep

Pa, Pq, Pt, Pq, Pv, Pc, Psk, Pku, PSm, PΔq, Pδc, PPc, PLo, Plr, PHSC

Wa, Wq, Wt, Wz, Wp, Wv, Wc, Wsk, Wku, WSm, WΔq, Wδc, WPc, WLo, Wlr, WHSC

Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Rpk*, Rvk*, WDSm, WDc, WDt

R, AR, Rx, W, Aw, Wx, Wte, Rke, Rpke, Rvke, Mr1e, Mr2e, A1e, A2e

Available charts: Roughness, Waviness, Dominant waviness, Primary, Material ratio curve (bearing) and height amplitude distribution (density).

Unit of measurement: Millimeters and inches

User interface: Color display touchscreen TFT, 7 inches, 3 impermeable membrane switches

Languages: Italian, French, Inglese, German, Spanish, Portuguese, Japanese, Chinese, Korean

Memory: Up to 4000 measurements for roughness – Up to 1000 for profilometry

CAD: Functions to process the integrated profile,

Points: carthesian – on the profile – intersection – limit – maximum -  minimum

Lines: best-fit – polar – interrupted - between two or more points – parallel

Arcs: best-fit – interrupted - between three or more points – center and radius – tangent

Dimensions: Aligned – Vertical – Horizontal – Radius – Angle – Line-point distance

Advanced: Axis alignment – Z magnification

Visualization: Pan – Zoom

Printing:

1- Capability to print on a common USB desktop printer in A4 format (Example: HP deskjet)

2- Capability to print to PDF on a USB drive

3- Printing on a PR11 device using Bluetooth connection

Equipment: WARPsurf roughness tester with SB300 magnetic probe and stylus 1-Y roughness, battery charger 110-230V, roughness specimen, plastic case, user manual
