Gain: 1 dBi, 3 dBi, 5 dBi
VSWR: 3

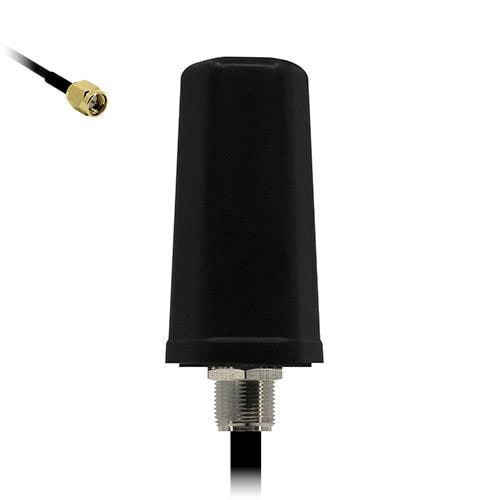

Style: Cone
Length: 77 mm
Diameter: 37 mm
Frequency: 698 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, 2.3 GHz to 2.7 GHz
Impedance: 50 Ohms
Cable Type: 1 M RG174
Application: Cellular Applications, Wireless Applications
Unit Weight: 170 g
Cable Length: 1 m
Polarization: Vertical
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Number of Bands: 3 Band
Center Frequency: 700 MHz, 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 2500 MHz
Mechanical Style: Module
Maximum Frequency: 2.7 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 20 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
