Gain: 2.16 dbi
VSWR: 2.1

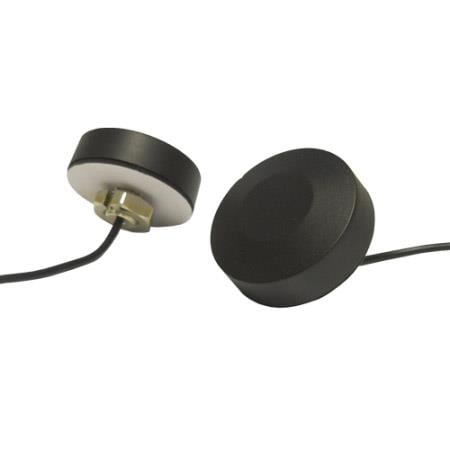

Style: Puck
Length: 15 mm
Diameter: 46 mm
Frequency: 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 2.5 M RG174
Application: Cellular Applications
Unit Weight: 90 g
Cable Length: 2.5 m
Polarization: Vertical
Power Rating: 35 W
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Frequency Range: 800 MHz to 2.1 GHz
Number of Bands: 4 Band
Center Frequency: 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz
Mechanical Style: Module
Maximum Frequency: 2.1 GHz
Minimum Frequency: 800 MHz
Termination Style: Connector
Antenna Connector Type: SMA Male
Maximum Operating Temperature: + 75 C
Minimum Operating Temperature: - 30 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
