Gain: 3 dBi, 5 dBi
VSWR: 1.7

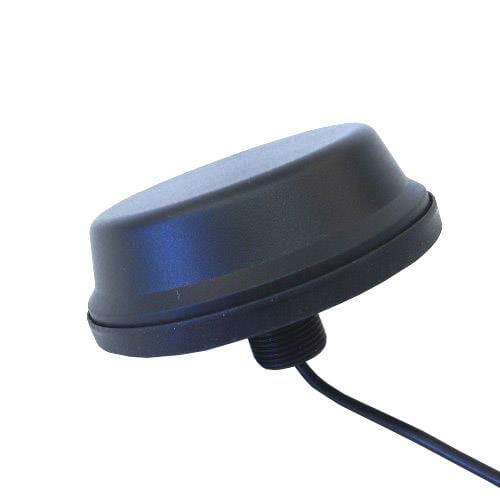

Style: Puck
Length: 23 mm
Diameter: 80 mm
Frequency: 2.4 GHz, 5.8 GHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 2.5 M RG174
Application: Wireless Applications
Unit Weight: 90 g
Cable Length: 2.5 m
Polarization: Linear Vertical
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Frequency Range: 2.4 GHz to 5.9 GHz
Number of Bands: 2 Band
Center Frequency: 2.45 GHz, 5.5 GHz
Mechanical Style: Module
Maximum Frequency: 5.9 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, RFID
Antenna Connector Type: RP-SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
