Gain: 3 dBi
VSWR: 1.8

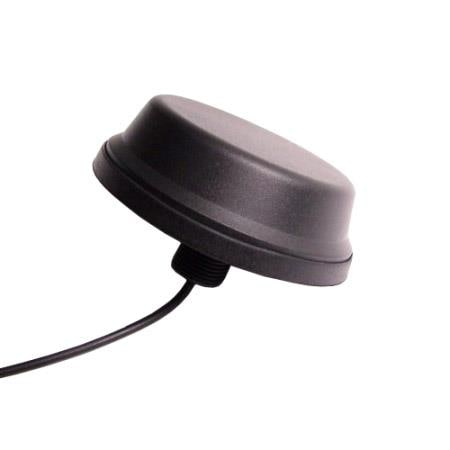

Style: Puck
Length: 23 mm
Diameter: 80 mm
Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: 1.5 M RG174
Application: Cellular Applications
Unit Weight: 85 g
Cable Length: 1.5 m
Polarization: Linear Vertical
REACH - SVHC: Details
Mounting Style: Direct / Permanent Mount
Frequency Range: 850 MHz to 2.1 GHz
Number of Bands: 4 Band
Center Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz, 2.1 GHz
Mechanical Style: Module
Maximum Frequency: 2.1 GHz
Minimum Frequency: 850 MHz
Termination Style: Connector
Protocol - Sub GHz: ISM
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS
