VSWR: 2.0:1

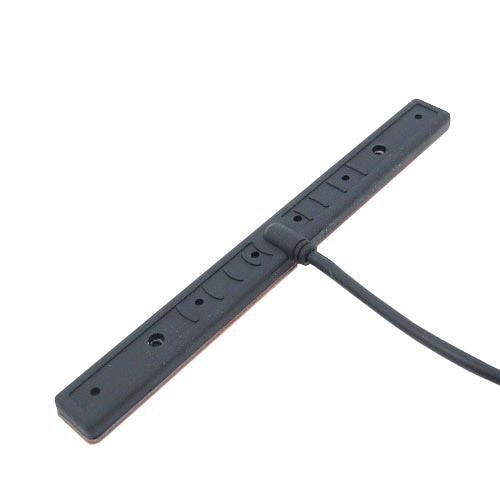

Style: T-Bar
Width: 10.8 mm
Height: 4 mm
Length: 104 mm
Frequency: 850 MHz, 868 MHz, 900 MHz, 915 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz
Impedance: 50 Ohms
Cable Type: 2.5 M RG174
Application: Cellular Applications, Wireless Applications
Unit Weight: 40 g
Cable Length: 2.5 m
Polarization: Vertical
REACH - SVHC: Details
Mounting Style: Adhesive Mount
Frequency Range: 850 MHz to 2.4 GHz
Number of Bands: 4 Band
Center Frequency: 850 MHz, 868 MHz, 915 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz
Mechanical Style: Module
Maximum Frequency: 2.4 GHz
Minimum Frequency: 850 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM
Antenna Connector Type: SMA Male
Protocol - WiFi - 802.11: 802.11, WiFi, WLAN
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 20 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
