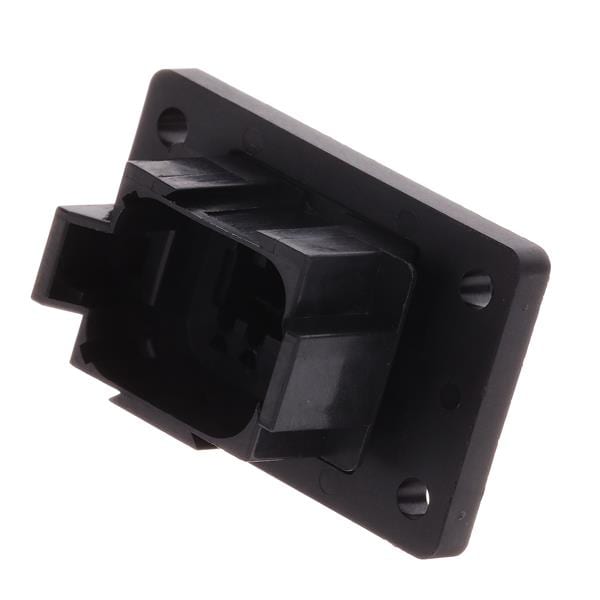

Width: 35.5 mm
Gender: Receptacle (RP - Male)
Length: 55 mm
Dimensions: 55 mm x 35.5 mm
Insulation: Insulated
Unit Weight: 30.398 g
Contact Type: Pin (Male)
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Mounting Flange
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: AT06-08SXx
Number of Positions: 8 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
