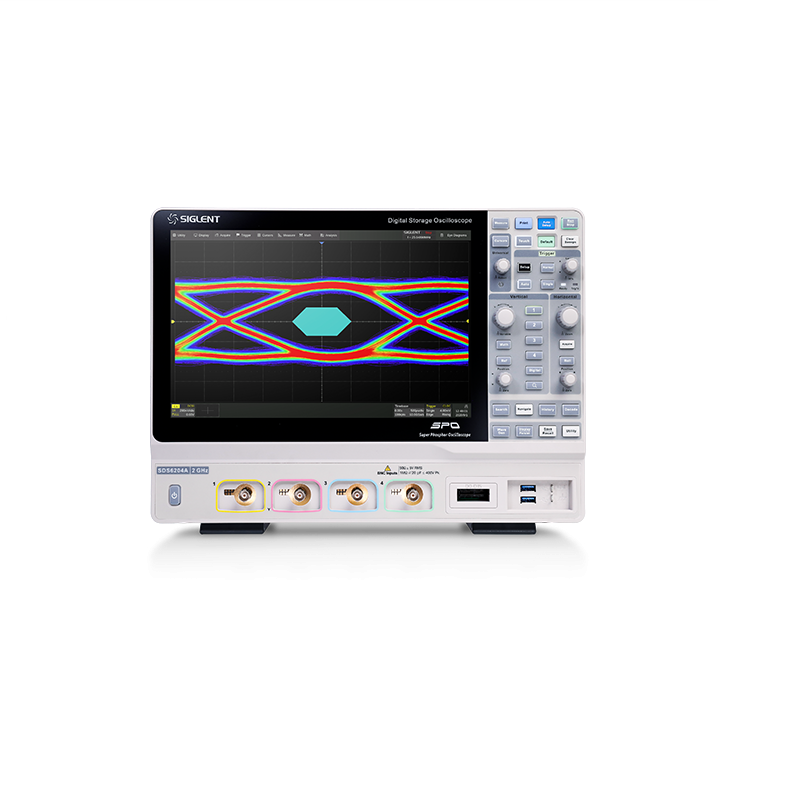

Analog channels: 4+EXT
Bandwidth: 2GHz
Sample rate (Max.): 5GSa/s (10 GSa/s ESR) @ each channel
Memory depth (Max.):
+ 500Mpts/ch (single-channel）
+ 250Mpts/ch (dual-channel)
+ 125Mpts/ch (3 or 4 channels)
Waveform capture rate (Max.):
+ Normal mode: 170,000wfm/s;
+ Sequence mode: 750,000wfm/s
Vertical resolution: 8-bit, up to 16-bit in Hi-Res mode
Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode:
+ Standard: I2C, SPI, UART, CAN, LIN
+ Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)
Measurement: 50+ parameters，statistics, histogram, trend, and track supported
Math:
+ 4 traces
+ 8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold. Supports formula editor
Data analysis: Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis
Digital channel (optional): 16-channel; maximum sample rate up to 1 GSa/s; record length up to 50Mpts
Waveform generator (optional): Single-channel external USB isolated waveform generator, frequency up to 25MHz, 125 MSa/s sample rate, 16kpts waveform memory
I/O:
+ USB 3.0 Host x2，USB 2.0 Host x2，USB 2.0 Device，LAN，micro SD card, HDMI, External trigger，
+ Auxiliary output (TRIG OUT, PASS/FAIL)
Probe (Standard): SP3050A, 500 MHz, 1 probe supplied for each channel
Display: 12.1 TFT-LCD with capacitive touch screen (1280*800)
