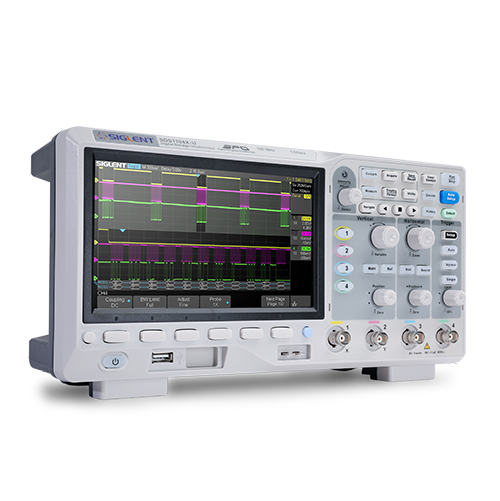

Bandwidth: 100MHz
Sample rate (Max.): 1GSa/s (One channel), 500MSa/s(Two channels), 250MSa/s(Four channels)
Channels: 4
Memory depth (Max.): 14Mpts
Waveform capture rate (Max.): 100.000wfm/s (normal mode), 400.000wfm/s (sequence mode)
Trigger type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial trigger and decoder (Std): IIC, SPI, UART, CAN, LIN
I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Probe (Std): 4 pcs passive probe PP510
Display: 7-inch TFT-LCD (800x480)
Weight: 2.6kg
Standard accessories
USB cable: 1
Quick Start: 1
Passive probe: 4
Certification: 1
Power cord: 1
Optional accessories
Isolated Front End: ISFE
STB Demo Source: STB-3
High Voltage Probe: HPB4010
Current Probes: CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
Differential Probes: DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A
Rack Mount: SDS1X-E-RMK
