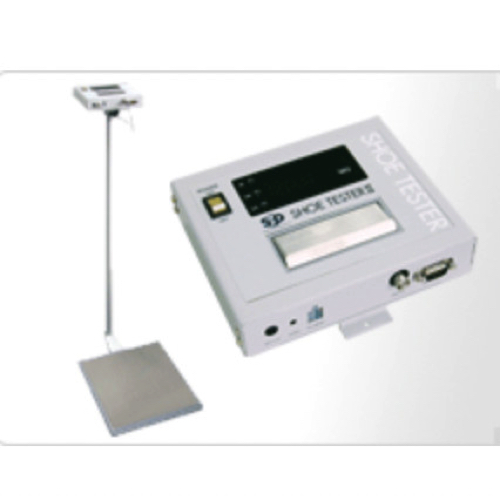

Shishido SHOETESTERⅡ Static Electricity Measuring Instrument (0-200 MΩ)

Measurment voltage: 10VDC

Measurment accuracy: ±10%+2digit

Measuring Range: 0.00 to 200.0MΩ

Upper limit value: 1,5,10,20,35,50,100MΩ

Lower limit value: 0.1,0.5,1,5,10MΩ

Alarm: If the measured value is within range: OK light (green)

If the measured value exceeds the maximum value: HI light (red)

If the measured value is under the minimum value: LOW light (red)

Buzzer ON/OFF mode: 1:measurement results

2:measurement complete

Function check: Ohm self check button, 0.95 to 1.05MΩ

(Display green)

Power supply: DC12V AC Adapter(100 to 240VAC)

Dimensions: Main unit: 170×140×37mm(W×D×H)

Measurement stand: 320×320×23mm(W×D×H)

Weight: Main unit: 0.9kg

Footplate: 4.5kg

Option:

Support pole with amgle adjustment function: OPSHT2-PA

OK/NG signal cable: OPSHT2-SCA

RS-232C cable: OPSHT2-RCA
