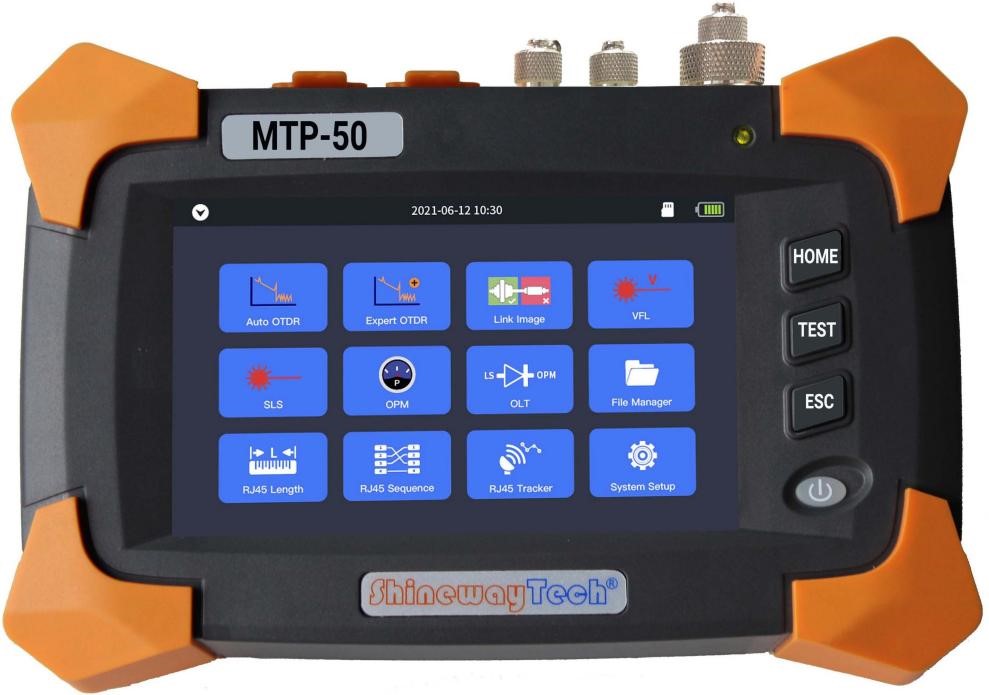

Model: Basic
Wavelength: 1310/1550nm±20nm
Dynamic Range(2): 24/22dB
Event Dead Zone(3): 1.5m
Attenuation Dead Zone(3): 8m
Distance Range: 0.5,1,2,4,8,16,32,64,100KM
Pulse Width: 3ns ~ 20us
Averaging Time: 5s, 15s, 30s, 1min, 2min, 3min
Distance Measure Accuracy: ±(1m + 5×10-5×distance + sampling space)
Attenuation Detect Accuracy: ±0.05 dB/ dB
Reflection Detect Accuracy: ±3 dB
Sampling Resolution: 0.05 ~ 8m
Refractive Index: 1.00000 ~ 2.00000
Loss Resolution: 0.001dB
Loss Threshold: 0.01dB
Connector: FC/UPC(Interchangeable SC, ST)
Multi-tasking: Support
General Specifications :
Display: 5 inch color LCD, Multi-touch capacitive touchscreen
Power Supply: Lithium Battery: 3.7V, 6600mAh
: AC Adapter: 5VDC, 2A
Battery Life: 8 hours continuous operation, 20 hours standby
Data Storage: 8G, ≥200,000 records
Data Interface: USB Type C
Operating Temperature: -10℃ ~ 50℃
Storage Temperature: -40℃ ~ 70℃
Relative Humidity: 0 ~ 95% (non-condensing)
Weight: 0.7kg(Including battery)
Dimensions (H×W×T): 190×130×65mm
Visual Fault Locator:
Wavelength: 650nm±20nm
Output Power: ≥10mW
MOD: CW/1Hz/2Hz
Connector: Universal 2.5mm
Stabilized Laser Source:
Wavelength: Same as OTDR working wavelength(4)
Output Power: ≥ -5dBm (adjustable)
MOD: CW/270/330/1K/2KHz
Stability: CW, ±0.5dB/15min(After 15 min warming up)
Connector: FC/UPC(Interchangeable SC, ST)
Optical Power Meter:
Calibrated Wavelength: 850,1300,1310,1490,1550,1625,1650nm
Power Range: -50 ~ +26dBm
Detector Type: InGaAs
Display Resolution: 0.01dB
Accuracy: ± 5%
Frequency Identification: CW/270/330/1K/2KHz
Connector: Universal 2.5mm
Optical Loss Test:
Stabilized Laser Source: Same as SLS Module
Optical Power Meter: Same as OPM Module
Detector Type: InGaAs
Display Resolution: 0.01dB
Accuracy: ± 5%
Frequency Identification: CW/270/330/1K/2KHz
Connector: Universal 2.5mm
Optical Loss Test:
Stabilized Laser Source: Same as SLS Module
Optical Power Meter: Same as OPM Module
IL Test: Support
RJ 45 Cable Length Test (5):
Test Distance: ≥300m
RJ 45 Cable Sequence Test (5):
Sequence Test: Support
RJ 45 Cable Tracker (5):
Mode: Digital tracking
Distance: ≥300m
Online/Line Pair Tracking: Support
* Specifications subject to change without notice
Notes:
(1) Specifications describe the instrument’s warranted performance, measured with typical UPC type connectors. Uncertainties due to the refractive index of fiber are not considered.
(2) The dynamic range is measured at maximum pulse width and averaging time of 3 minutes.
(3) Conditions for dead zone measurement: minimum range, minimum pulse width, reflection intensity is less than -45dB, typical value.
(4) Stabilized laser source shares OTDR optical port and work on the same OTDR wavelength.
(5) Visual Fault Locator, Stabilized Laser source, Optical Power Meter, Optical Loss Test is standard on BASIC and ADVANCED models. RJ45 cable length, RJ45 cable sequence and RJ45 cable tracker is standard on ADVANCED models only.
Ordering Information
Standard Package Includes:
Instrument, Lithium Battery, USB Data cable, AC adaptor, Warranty Card, Production Test Report, Soft Carrying Case
