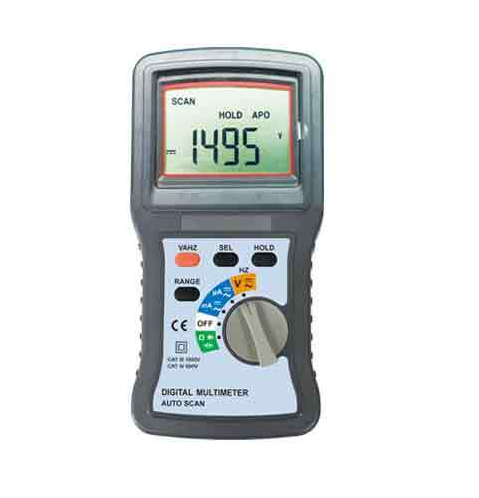

SEW 8002 DM Multimeter for Solar Power System and Power Equipment (DC 1500V/AC 750V)

DC Voltage: Input impedance : 10MΩ

+ Ranges: 600mV~1500V for general

+ Resolution: 0.1mV~1V

+ Accuracy: ±(0.5%rdg+5dgt)

AC Voltage: Input impedance : 10MΩ

+ Ranges: 600mV~750V

+ Resolution: 0.1mV~1V

+ Accuracy: ±(1.0%rdg+5dgt)

DC mA / µA: Overload protection 0.6A/1000V fast blow fuse for 600mA

+ Ranges: 600µA~600mA

+ Resolution: 0.1µA~0.1mA

+ Accuracy: ±(1.2%rdg+5dgt)

AC mA / µA: Overload protection 0.6A/1000V fast blow fuse for 600mA

+ Ranges: 600µA~600mA

+ Resolution: 0.1µA~0.1mA

+ Accuracy: ±(1.5%rdg+3dgt)

Resistance:

+ Ranges: 600Ω~60MΩ

+ Resolution: 0.1Ω~10kΩ

+ Accuracy: ±(1.2%rdg+3dgt); 60MΩ: ±(2.3%rdg+4dgt)

Capacitance:

+ Ranges: 6nF~60mF

+ Resolution: 1pF~10µF

+ Accuracy: ±(3%rdg+10dgt)

Frequency:

+ Ranges: 6kHz~100kHz

+ Resolution: 1Hz~100Hz

+ Accuracy: ±(0.5%rdg+2dgt)

Continuity:

+ Ranges: 600Ω

+ Audible threshold: Less than 30 Ω

Diode:

+ Ranges: 2V

+ Accuracy: ±(1.5%rdg+3dgt)

General:

+ Dimensions: 221(L) × 110(W) × 57(D)mm

+ Weight (battery included): Approx. 513g

+ Power source 1.5V (AA) × 2 (Alkaline battery)

+ Safety standard: IEC / EN 61010-1; CAT III 1000V; IEC / EN 61010-1; CAT IV 600V; EN 61326-1

+ Accessories: Instruction manual; Test leads; Hand strap ; Batteries
