SEW 506 EL Analog Leakage Meters (AC, 0〜30mA) | EMIN.CO.ID

Leakage current tester
SEW 506 EL Analog Leakage Meters (AC, 0〜30mA)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

Product image

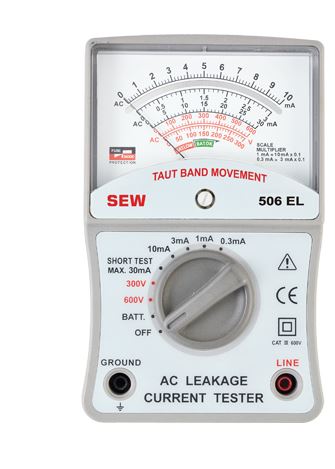

SEW 506 EL Analog Leakage Meters (AC, 0〜30mA)

ManufacturerSEW(View more products from this manufacturer)

Model506 EL

OriginTaiwan

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measuring range: 0.3mA-1mA-3mA-10mA-30mA
Accuracy: ±2% of full scale
Input resistance: 1.5kΩ
AC Voltage range: 0-300 / 0-600V
Accuracy: ±2% of full scale
Dimensions: 160(L) × 100(W) × 45(D)mm
Weight:360g
Power source: 9V(6F22) × 1

FEATURES

● High quality movement.
● Compact and lightweight; easy to use and store.
● Mirror scale: for easier viewing & reading.
● Built-in stand makes reading and measuring easy.
● 200μA full scale value.
● Fuse-protected.
● Low battery indication.

SPECIFICATIONS

AC Leakage Current
Measuring range	0.3mA-1mA-3mA-10mA-30mA
Accuracy	±2% of full scale
Input resistance	1.5kΩ
AC Voltage
Measuring range	0-300 / 0-600V
Accuracy	±2% of full scale
Input resistance	300V 1MΩ 600V 2MΩ
General
Low battery indication	Battery check indicate good battery from 7Vdc to 9Vdc during a load test of 2mA
Dimensions	160(L) × 100(W) × 45(D)mm
Weight (battery included)	Approx. 360g
Power source	9V(6F22) × 1
Safety standard	EN 61010-1 CAT III 600V EN 61326-1
