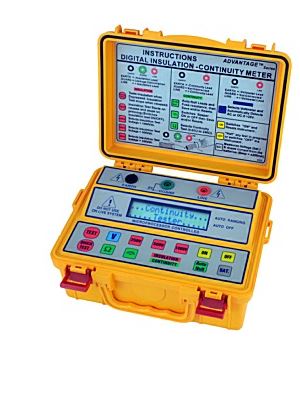

SEW 4153 IN Insulation Testers (1000V, 8GΩ)

Name: SEW 4153 IN Insulation Testers (1000V, 8GΩ)
Brand: SEW

ManufacturerSEW(View more products from this manufacturer)

Model4153 IN

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Test voltage (DC V) and Measuring ranges: 250V / 0.2M~2GΩ, 500V / 0.2M-4GΩ, 1000V / 0.2M-8GΩ

Output voltage @ 1mA Rated test Voltage +10% Max

Accuracy :0.2M~4GΩ : ±3%rdg ,4GΩ~8GΩ : ±5%rdg

Continuity

Measuring range:0.01-1999Ω

Accuracy:0.01-100Ω : ±1.0%rdg, 100-300Ω : ±1.5%rdg, 300-1999Ω : ±2.0%rdg

Resolution : ±2 counts

Voltmeter

AC voltage (Auto): 0-700V

DC voltage (Auto):0-950V

Accuracy : ±1.5% rdg

Resolution : ±1V

Protections

Over load :700V

(between all terminals)

Load battery test current: About 300mA

Dimensions: (with housing front cover): 250(L) × 190(W) × 110(D)mm

Weight

(battery included):Approx. 1460g

Power source 1.5V (AA ) × 8

Safety standard : EN 61010-1 CAT III 600V, EN 61326-1

Accessories : Instruction manual, Test leads, Shoulder belt, Batteries

FEATURES

● Microprocessor-controlled.
● Measures Insulation Resistance, voltage (AC-DC) measurements
with automatic hold facility, diode, ohm, and continuity with a short
circuit current of minimum 220mA.
● Auto-off function.
● Energy conservation feature.
● Ener-Save™ limit the test duration to about 10 Seconds.
● Quick Test and EnerSave™ are unique features. Both saves energy.
● No moving parts. All calibration are saved internally in a non volatile memory.
● Easy calibration at any facility around the world.
● Operates with rechargeable batteries, alkaline or low cost general purpose batteries.
● Low cost maintenance, calibration, and ownership.
● Complies to all the latest regulations, including UK.

SPECIFICATIONS

Insulation Test
Test voltage (DC V) and Measuring ranges	250V / 0.2M~2GΩ 500V / 0.2M-4GΩ 1000V / 0.2M-8GΩ
Output voltage @ 1mA	Rated test Voltage +10% Max
Accuracy	0.2M~4GΩ : ±3%rdg 4GΩ~8GΩ : ±5%rdg
When voltage is constant, Current is limited at	1.2mA
Short circuit current	4mA Max.
Continuity
Measuring range	0.01-1999Ω
Accuracy	0.01-100Ω : ±1.0%rdg 100-300Ω : ±1.5%rdg 300-1999Ω : ±2.0%rdg
Short circuit terminal current	>220mA
Open circuit terminal voltage	5V dc
Resolution	±2 counts
Voltmeter
AC voltage (Auto)	0-700V
DC voltage (Auto)	0-950V
Accuracy	±1.5% rdg
Resolution	±1V
Protections
Over load	700V (between all terminals)
Over voltage	Class III-700V towards ground
Fuse	500mA 250V, (5 × 20mm), HBC, Fast Blow
General
Display	2 lines × 16 characters LCD
Auto-null threshold	5Ω
Buzzer threshold	3Ω
Fast test	10Sec
Long test	60Sec
With PI and DAR test function	10Min
Load battery test current	About 300mA
Operating temperature	0°C to 40°C not in full sun
Storage temperature	-10°C to 50°C
Dimensions (with housing front cover)	250(L) × 190(W) × 110(D)mm
Weight (battery included)	Approx. 1460g
Power source	1.5V (AA ) × 8
Safety standard	EN 61010-1 CAT III 600V EN 61326-1
