RECEIVER
Tuner Circuit Mid Frequency: 10kHz
Bar Graph Leds: 9
Battery Indicator Led: 1
On Button: 1
Off Button: 1
Buzzer: 1
Auto-off (Min) Approx: 1
Power Source: 9V (6F22 006P) x 1 battery
Dimensions: 200(L) x 50(W) x 40(H) mm
Weight: 112g
Material: Polycarbonate/ABS
TRANSMITTER
Working Voltage: 110 to 240 Vac (50/60Hz)
Frequency of Sourced Signal: 10 kHz
Dimensions: 60 (L) x 50(W) x 30(H) mm
Weight: 134g
Connection: Specify type of plug
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FEATURES | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

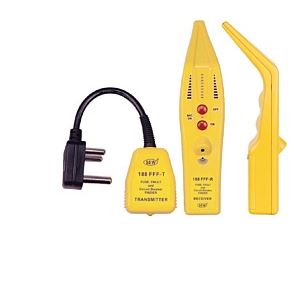

● The 188FFF is a Fuse and Fault Finder which comprises of two
parts : The Receiver and the Transmitter. ● The Transmitter, draws a current from the mains supply circuit to which it is connected to. The Signal ● Current from the Tx is at about 10kHz. The Transmitter is powered by the mains and requires no batteries. ● The 10kHz signal current generated by the Transmitter is then searched(sniffed) by the Receiver to detect the Fuse, Circuit Breaker or the faulty circuit. ● The Receiver is a tuned circuit which has it is center frequency tuned to about 10kHz. The sensor is located in the tip of the Receiver. ● The amplitude of the received signal is shown on a bar-graph type Leds. ● The more Leds ON, the stronger the signal. ● The Receiver uses one 9V battery. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SPECIFICATIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
