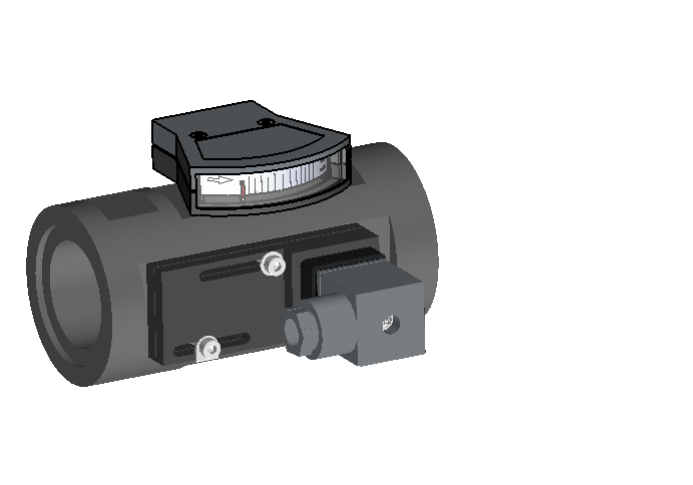

With measurement display at side O1
Switch: reed switch
Nominal width: DN 40
Process connection: female thread G 1 1/2
Switching range: 50 - 120 l/min
Pressure loss: 7 bar at Qmax
Qmax.: to 160 l/min
Tolerance: ±10 % of full scale value
Pressure resistance: PS 200 bar
Media temperature: -20..+120 ℃
Ambient temperature: -20..+70 °C
Media: oil
Switching voltage: Max. 250 V AC
Switching current: Max. 1.5A
Switching capacity: Max. 50 VA
Protection: class 2 - safety insulation
Ingress protection: IP 65
Electrical connection: plug DIN 43650-A / ISO 44000, optionally round plug connector M12x1, 4-pole
Materials medium-contact
Brass construction: CW614N nickelled, CW614N, 1.4305, 1.4310, hard ferrite
Non-medium contact materials: CW614N nickelled, PC, PA, NBR, 1.4301, CW508L nickelled,
Installation location
Standard: horizontal inwards flow from the left; other installation positions are possible; the installation position affects the switching point and range.
For details please see Datasheet
