Thermocouple : NiCr-Ni (type K)
Measuring range : -65..+200 °C
Response time (T90) : approx. 5 s
Accuracy : class 1
Thermocouples wires : 2 m silicone cable (max. 200 °C) flexible and robustSensor element : Pt100 (2- / 3- or 4-wire); Pt1000 (2- / 3- or 4-wire)
Measuring range MB
MB 1 : -50..+400 °C
MB 2 : -200..+400 °C
MB 3 : -200..+600 °C
MB 4 : -50..+850 °C

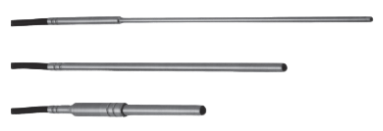

Probe diameter D : 3 mm, 4 mm, 5 mm, 6 mm, 8 mm
other diameters (e.g. 1.6 mm, 2.2 mm) upon request
Fitting length EL : 50 mm, 100 mm, 150 mm, 250 mm, 500 mm, 1000 mm, 1500 mm other fitting lengths possible
Cable sleeve : for probe diameter D 3 mm, 4 mm, 5 mm, 6 mm, 8 mm:
cable sleeve Ø 5 mm x 50 mm additional to fitting length for probe diameter D 6 mm and MB3 or MB4:
cable sleeve Ø 8 mm x 35 mm and diminution Ø 5 mm x 17 mm additional to fitting length
Note: : The temperature of the cable sleeve must not exceed the permitted temperature of the cable
Accuracy : DIN class B, DIN class A,1/3 DIN class B, 1/10 DIN class B
Tube material : V4A
Cable : 1 m (standard), loose ends
PVC cable : up to max. 105 °C
Silicone cable : up to max. 200 °C (standard)
Teflon cable : up to max. 250 °C
Glass silk cable : up to max. 400 °C
Measuring point : strong magnetic, resilient measuring sensor with Cu-plate Ø 5 mm
Connection : miniature flat-pin plug NST1200
