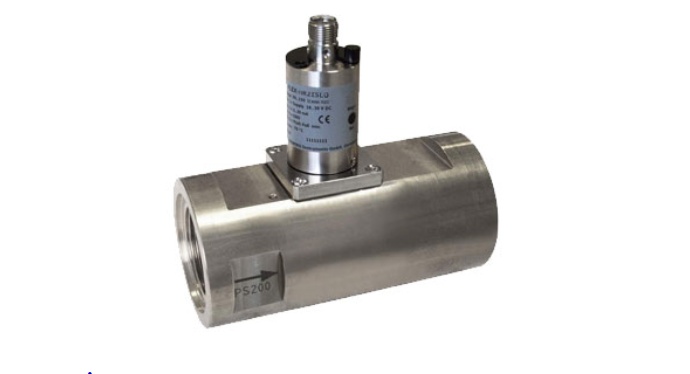

Sensor: analog Hall sensor
Nominal width: DN 32 / 40 / 50
Process connection: female thread G 1 1/4..G 2 (further process connections available on request)
Metering range: 10..160 l/min for details see table "Ranges"
Pressure loss: ~ 4..7 bar at Qmax
Qmax.: up to 160 l/min
Measurement accuracy: ±5 % of full scale value at constant viscosity
Viscosity stability: ±10 % of full scale value 30 ... 330 mm²/s
Pressure resistance: PS 200 bar
Medium temperature: -20..+85 °C, optionally -20..+120 °C
Ambient temperature: -20..+70 °C
Media: oil
Wiring: see section "Wiring"
Materials medium-contact
Brass construction: CW614N nickelled, CW614N, 1.4305, 1.4310, hard ferrite,
Stainless steel construction: 1.4571, 1.4310, hard ferrite
Materials, nonmedium-contact:
electronic adapter: CW614N nickelled
electronics housing: Stainless steel 1.4305
Supply voltage: 18..30 V DC
Power consumption: < 1 W
Analog output: 4..20 mA / max. load 500 Ω or 0..10 V / min. load 1 kΩ
Switching output: transistor output "Push-Pull" (resistant to short circuits and polarity reversal)
Iout = 100 mA max.
Hysteresis: adjustable, position of the hysteresis depends on minimum or maximum
Pulse output: pulse width 50 ms → max. output frequency < 20 Hz
Display (only with switching output): yellow LED (On = OK / Off = Alarm)
Electrical connection: for round plug connector M12x1, 5-pole
Ingress protection: IP 67
Weight: see table "Dimensions and weights"
Conformity: CE
Installation location
Standard: horizontal inwards flow; other installation positions are possible; the installation position affects the display,metering and switching range.
