Chlorine Gas Sensor (SS2168)
Output Signal: - 700±250 nA / ppm
Typical Baseline Range (pure air): ±2 ppm Cl2 equivalent
T90 Response Time: <30 seconds
Measurement Range: 0-10 ppm
Maximum Overload: 50 ppm
Linearity: Linear
Repeatability: 2%
Recommended Load Resistor: 10 ohms
Resolution (Electronics Dependent): < 0.1 ppm typical
Environmental
Temperature Range Continuous: -20℃ to +50℃
Pressure Range: 800 to 1200 mbar
Operating Humidity Range: 15% to 90% Rh
Life Time
Long Term Output Drift: <10% per annum
Recommended Storage Temp: 0℃ to 20℃
Expected Operating Life: >24 months in air
Intrinsic Safety Data
Maximum at 20ppm: 40mA
Maximum o/c Voltage: <1.0V
Maximum s/c Current: <0.1A

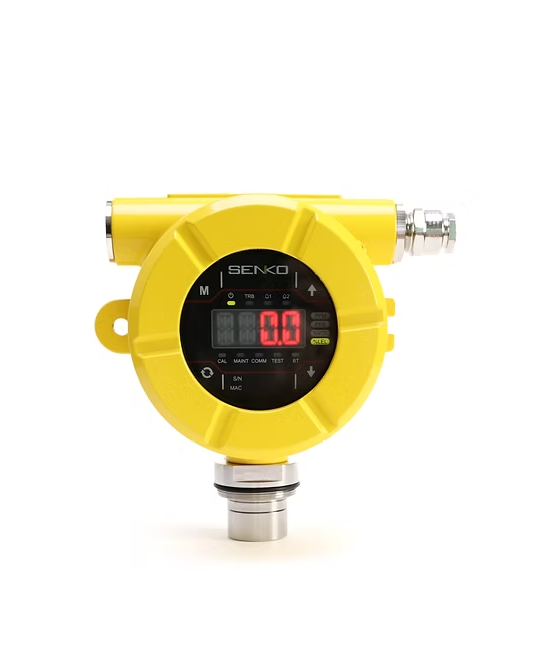

SI-200E
Dimentions: 169(W) x 188.5(D) x 107(H)mm
Weight : 2.4kg
Operation Power : DC : +24Vdc ±10%
Power Consumption : 3.6W @ ±24Vdc
Operation Mode Display: FND, Concentration of Gas, Alarm, Malfunction
Relay : 1st Alarm, 2nd Alarm, Fault Alarm (Rated 2.0A @ 30Vdc)
Analog Output Signal : 4-20mA
Digital Output Signal : RS-485
Measuring Type : Diffusion Type
Operating Temperature: -40℃ ~ +60℃
IP: IP65
Input and Setting : 4 Button, RS-485, Bluetooth
Wireless Interface: RS-485 Modbus, HART(Option)
Cable : 4-20mA, DC, Relay : Maximum 14 AW
