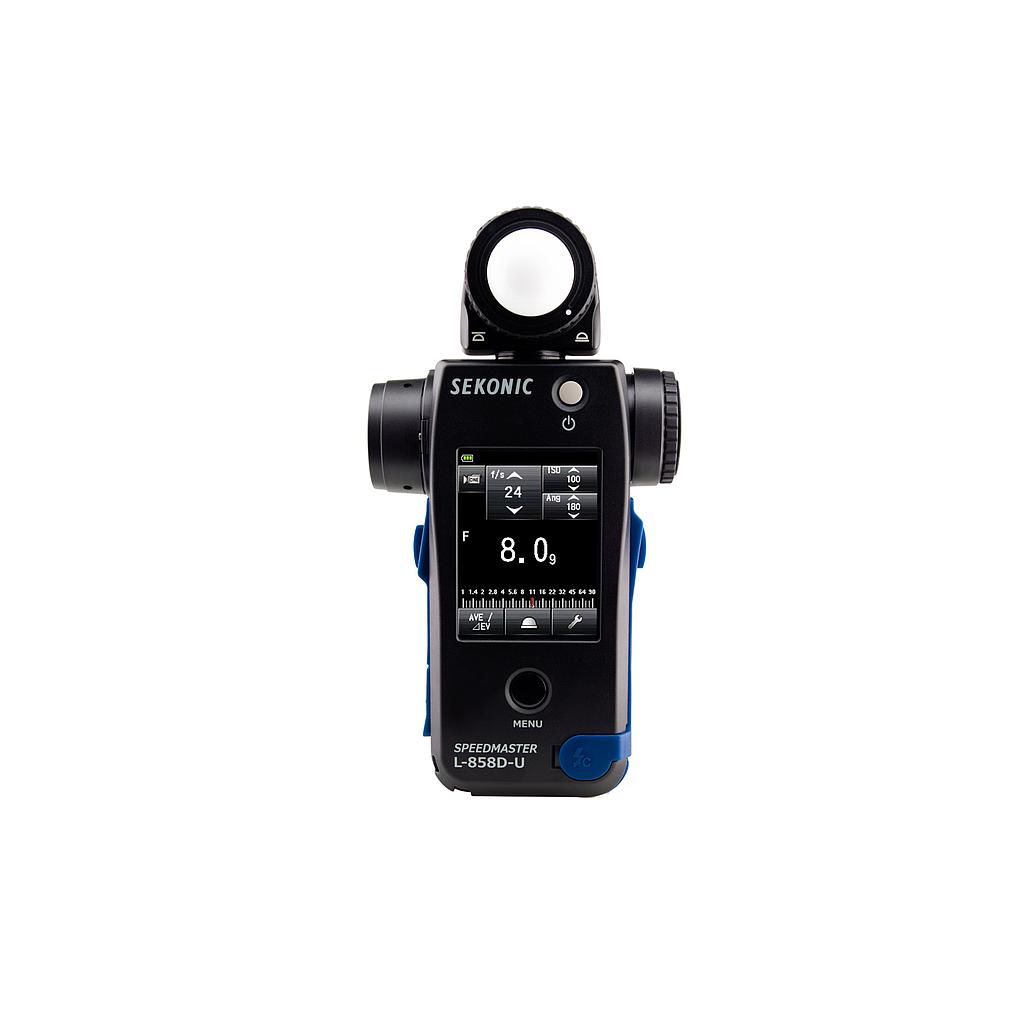

SEKONIC L-858D-U SPEEDMASTER Light Meter (-5~22.9 EV)

Sensor: SPD

Measuring Modes Ambient Light: T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL

Measuring Modes Flash: Cordless, Cord-in (PC), Radio triggering (with optional transmitters), Multiple cumulative flash, HSS, Flash duration analysis.

Measuring Range (ISO 100) Ambient Incident Light: -5 to 22.9 EV; 0.1 to 2,000,000 lx; 0.01 to 180,000 fc

Measuring Range (ISO 100) Ambient Reflected Light: -1 to 24.4EV; 0.1 to 980,000 cd/m2; 0.03 to 290,000 fl

Measuring Range Flash Incident Light: F0.5 to F161.2(=128.9)

Measuring Range Flash Reflected Light: F1.0 to F161.2(=128.9),

ISO Range: ISO 3 to ISO 13,107,200 + ISO 850

Aperture Range (Ambient Light): F0.5 to 161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step)

Aperture Range (Flash Light): F0.5 to 161.2(=128.9) in 1, 1/2, 1/3 step (Analog Scale: F1.0 to F90 in 1/3 step)

Shutter Speeds Range (Ambient Light): 30m to 1/64,000s in 1, 1/2, 1/3 step (Analog scale: 4s to 1/2,000s in 1/3 step)

Shutter Speeds Range (Flash Light): 30m to 1/16,000s in 1, 1/2, 1/3 step

Flash Duration Range (Flash Light): 1/40 to 1/55,500s（25ms to 18us) from 0.1. to 0.9 (in 0.1 steps)

Frame Rate Range (Ambient Light): 1 to 1,000 f/s plus other 20 settings (customized from 0.001 to 99,999.999)

Shutter Angles Range (Ambient Light): 1 to 358 deg. plus other 20 settings (customized from 0.001 to 360)

EV Range (Ambient Light): Incident light: EV-73.9 to EV103.8 Reflected light: EV-69.9 to EV105.3

Operating Temperature: -10 to 50 deg. C

Storage Temperature: -20 to 60 deg. C

Power source: 1.5V x 2 (AA battery)

LCD: 2.7" color dot matrix touch panel LCD

Weight (KG): 0.24

Dimensions DxWxH (cm): 17.60 x 9.40 x 4.90

Item Includes: Lens Cap, Strap, Soft Case, Start up guide, Anti-glare film, Safety Precaution, Limited 1-Year Warranty with 2-Year Extension upon Online Registration
