Gross Weight*: 1.49 lb
*The weight listed is gross product weight including standard packaging, actual shipment weight may vary.
The following electrical specifications are valid for operating temperatures of 65°F (18°C) to 82°F (28°C), at relative humidity up to 90% for altitudes up to 2000 m, unless otherwise noted. Pollution degree 2, class 3.
Test Function: Continuity
Measurement Range(±5% ±2° of arc.): 0 to 10 megohms
Open Circuit Voltage: 10V ± .7V
Internal Resistance: 500 ohms
Test Function: 10V
Measurement Range(±5% ±2° of arc.): 10^5 ohms to 10^11 ohms
Open Circuit Voltage: 10V ± .7V
Internal Resistance: 2 ohms
Test Function: 100V
Measurement Range(±5% ±2° of arc.): 10^5 ohms to 10^11 ohms
Open Circuit Voltage: 100V ± .7V
Internal Resistance: 2 ohms
Megohmmeter Size: 4.6"(H) x 3.3"(W) x 1.7"(D (11.7 x 8.4 x 4.3 cm)
Weight: 5 lbs. (2.27 Kg) each
Diameter: 2.7” (6.8 cm)
Height: 5.1" (13.0 cm) (w/ handle and pad)

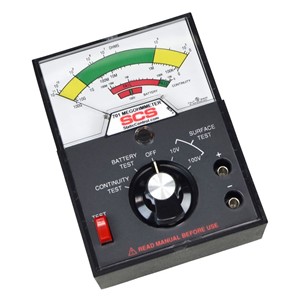

Lightweight, user-friendly Analog Surface Resistance Megohmmeter
Two different test scales and settings for testing both surface-to-ground (Rtg) and surface-to-surface (Rtt) resistance
Color-coded number scales help identify ideal resistance ranges
ETL and CE Listed
NIST Calibrated – Original Calibration Certificate can be Downloaded Here
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.
