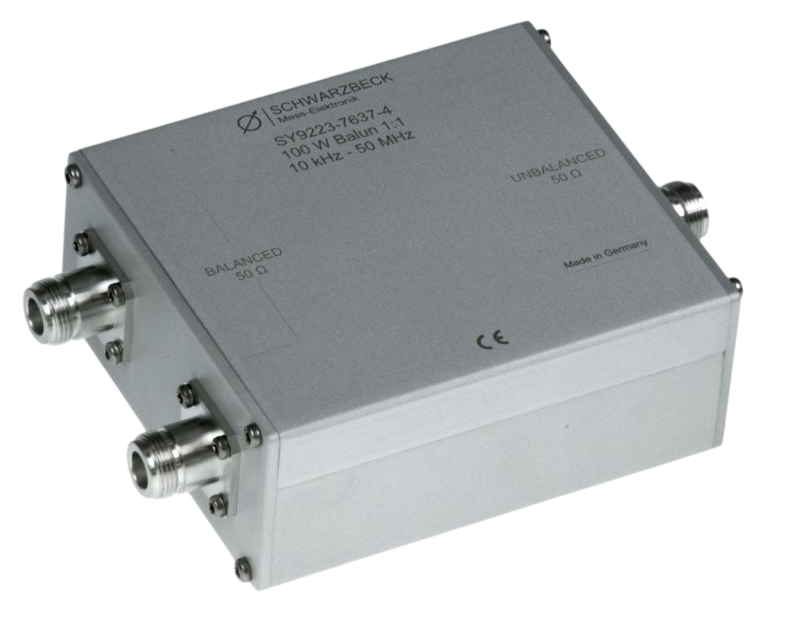

Frequency range: 9 kHz ... 50 MHz
Nominal impedance: 50 Ω
Continuous power dissipation: 100 W
Impedance ratio: 1:1
Return loss: typ. >15 dB @ 30 MHz
Insertion loss: typ. <0.3 dB @ 30 MHz
Amplitude difference between outputs: <0.5 dB
Connector symmetrical: 2× N-connector, 50 Ω between the two inner conductors
Connector unsymmetrical: N-connector, 50 Ω
Housing dimensions: 160 mm × 105 mm × 50 mm
Housing material: Aluminium
Weight: ca. 500 g
Standard: ISO-7637-4
