Schwarzbeck CS-50 Unsymmetrical Splitter (DC … 30 MHz) | EMIN.CO.ID

EMI and EMC Test System
Schwarzbeck CS-50 Unsymmetrical Splitter (DC … 30 MHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

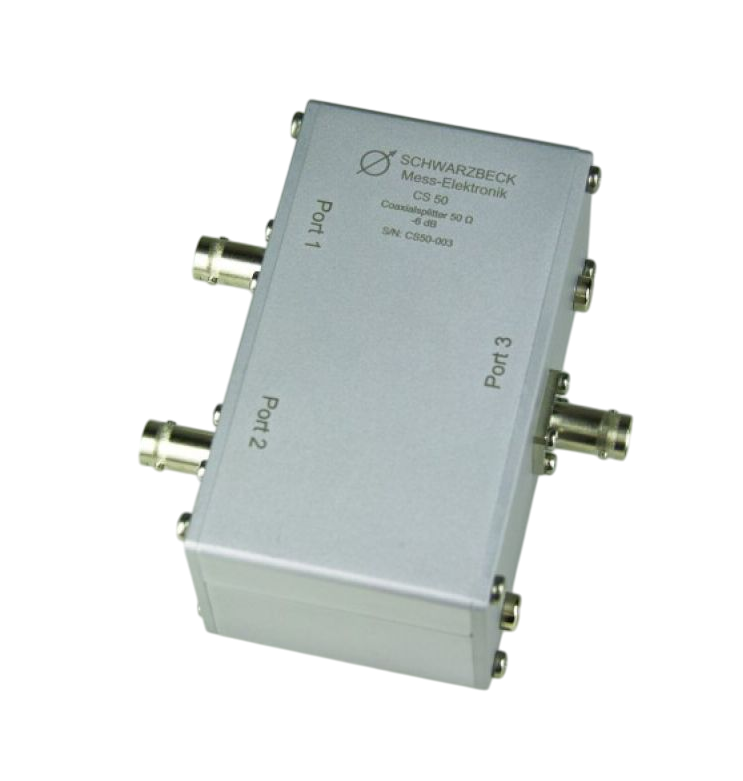

Product image

Schwarzbeck CS-50 Unsymmetrical Splitter (DC … 30 MHz)

ManufacturerSchwarzbeck(View more products from this manufacturer)

ModelCS-50

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency range: DC … 30 MHz

Usable frequency range (typical): DC … > 50 MHz

Insertion loss: 6 dB ± 0.2 dB

Frequency response (flatness): < ±0.1 dB

Nominal impedance: 50 Ω

Max. input power: 1 W

VSWR: < 1.1 :1 @ 30 MHz

Housing material: Aluminium

Housing dimensions (L × W × H): 125 mm × 104 mm × 50 mm

Weight: approx. 280 g

Terminals: BBNC-Plug

Ground connectors: Bottom of case and 4 mm laboratory jack

Datasheet
