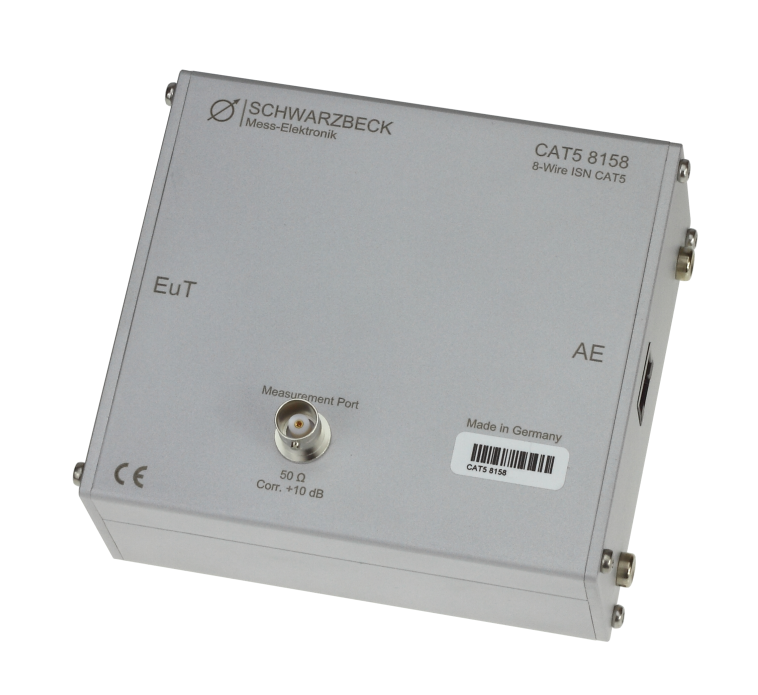

Frequency range (ISN): 150 kHz – 30 MHz
Frequency range (CDN): 150 kHz – 80 MHz
Type: T8, T4, T2-ISN, CDN (EAB 80-150 required)
Insertion loss: differential mode AE–EuT: typ.: < 1 dB 100 kHz to 30 MHz, typ.: < 2.5 dB 30 MHz to 250 MHz
Decoupling AE–EuT: >55 dB
Longitudinal Conversion Loss (LCL): 65 dB @ 150 kHz, 49 dB @ 30 MHz
Voltage division factor for asymmetrical voltage: 10 dB ± 1 dB
Impedance (asymm.): ≤30 MHz: 150 Ω ± 20 Ω, >30 MHz: 150 Ω + 60 Ω / –45 Ω
Common mode phase angle: 0° ± 20°
Connectors AE, EuT: RJ-45 (8P8C)
Current max.: 960 mA (IEEE Std 802.3bt-2018 Ch.145)
Max. voltage: 63 VAC / 100 VDC
Measurement port: BNC 50 Ω female
Crosstalk PSFEXT: typ.: typ.: > 66 dB 150 kHz – 1 MHz, typ.: > 46 dB at 10 MHz, typ.: > 38 dB at 30 MHz
Weight: 465 g
Outer dimensions (W × H × D): 125 mm × 62 mm × 105 mm
