Capacity N: 0 – 2.000 N
Resolution: 0.001 N
Capacity gf; kgf: 0 – 200.0 gf
Capacity ozf; lbf: 0 – 7.00 ozf
Measuring principle: Bidirectional force sensor with strain gauge
Accuracy: ±0.2 % full scale ±1 digit
Measuring units: N, kgf (gf), lbf (ozf) selectable
Display: OLED, 4 digit
Sampling rate: 2000 times/sec
Overload capacity: Approx. 200 % full scale, symbol flashes at 110 % full scale
Display update rate: 16 times/sec
Plug gauge: M6 male thread
Memory: Internal memory for max. 1000 values recallable peak – compression/tension
Setpoints: Programmable Max/Min setpoint with colour-coded indicators in the LED display
Output signal setpoints: Open collector: +NG, OK, -NG, OVL (to stop feed at Fmax or overload)
Output signal: RS-232 (8, 1, N, 19200), analog ±2 V DC, USB
Temperature range: 0 – 40 °C
Air humidity: 20 – 80 % RH, max.
Power supply: Rechargeable NiMH batteries (approx. 6.5 h continuous use, approx. 2 h charging time) and/or 100…240 V AC adapter and two adapters (EU/USA)
Housing material: Die-cast aluminium
Dimensions: 191 x 75 x 34 mm (LxWxH)
Weight, net (gross): approx. 490 g (1400 g)

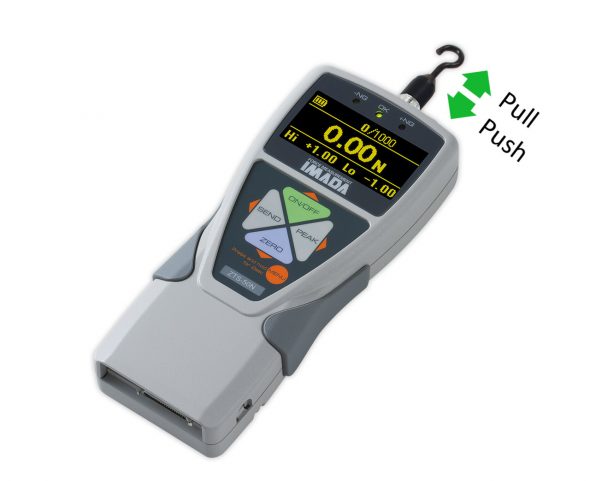

Delivery Includes: Force gauge ZTS with carrying case, standard attachment, AC adapter with 2 adapters (EU/USA), USB connecting cable, 1 CD-ROM with USB-driver and simple software for data transfer, manufacturers inspection certificate, operating instruction in German or English (as requested)
