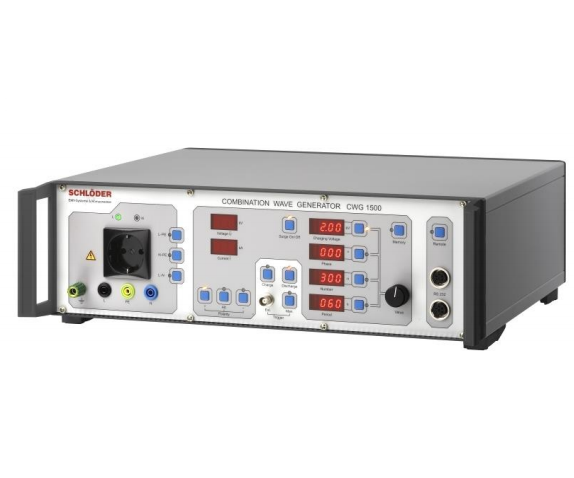

Surge / Hybrid Generator
Charging voltage: 0.2 - 4.4 kV
Loading time: ≤ 10 sec
Number of pulses: 1 - 999
Repetition rate: 10 - 990 sec
Phase angle: φ = 0° - 359°, 1° steps, net synchr. triggering 50 + 60 Hz
Polarity: positive, negative, alternating
Trigger: manual or external
Interface: RS 232
HV: Output unearthed or earth-related
Memory function: call up test level 1 - 4, max. 32 memories can be selected
Discharge parameters: display effective discharge voltage and current
Stored energy: 100 Ws max.
Operating temperature: 0 - 40 °C
Dimensions: 19" housing, 3 RU
Weight: appr. 18 kg
Supply voltage: 100-240 V / 47-63 Hz / 100 VA
Single phase integrated coupling network
Nominal voltage AC: max. 230 V / 16 A 50 / 60 Hz
Nominal voltage DC: max. 270 V / 16 A
Phase display: LED red; LED green
Symmetrical coupling: L - N: 18 µF
Asymmetrical coupling: L-PE, N - PE: 9 µF + 10 Ω
Test sample connection: Schuko socket; additional laboratory sockets
Earth connection: on the front panel and on the rear
Options
CWG 520 3-ph. coupling network 4 x 16 A
CWG 523 3-ph. coupling network 4 x 32 A
CWG 524 3-ph. coupling network 4 x 60 A
CWG 52x - 550 HV models up to 550 VAC L-L
CWG 1525 CDN for 2 unshielded, balanced connecting cables, 1 A
CWG 1526-4 CDN for 2 unshielded, unbalanced connection lines, 4 A
CWG 1526-10 CDN for 2 unshielded, unbalanced connection lines, 10 A
CWG 1528 CDN for 4 unshielded, unbalanced connection lines, 6 A
CWG 550 18 µF capacitor in housing
CWG 551 9 µF capacitor + 10 Ω Resistance in housing
CWG 553 0.5 µF capacitor + 40 Ω Resistance in housing
EMV-SOFT control software for surge, burst and mains interruption generators
