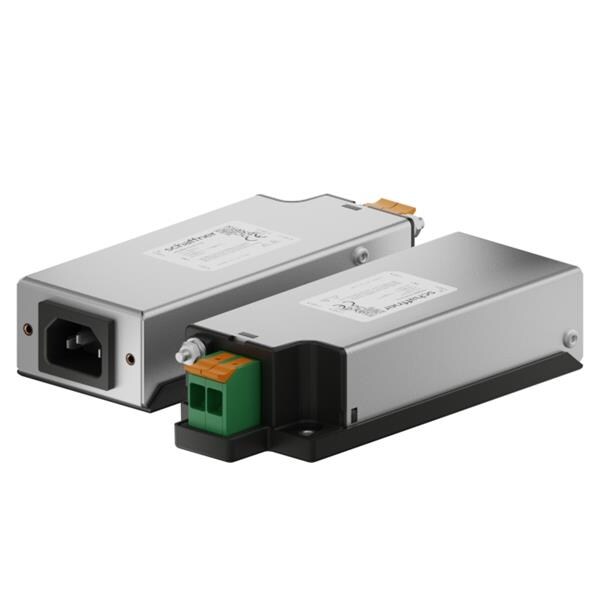

Schaffner FN2640-10-103-C11 Power Line Filters IEC Single phase filter 1HU 10 A, clamp connector, 4.7nF

Name: Schaffner FN2640-10-103-C11 Power Line Filters IEC Single phase filter 1HU 10 A, clamp connector, 4.7nF
Brand: Schaffner

ModelFN2640-10-103-C11

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 59 mm

Height: 35 mm

Length: 133 mm

Approvals: CE, CQC, ENEC14, UR

Inductance: 8.3 mH

Capacitance: 4700 pF

Filter Type: 1-Stage EMI/EMC Filter

Unit Weight: 300 g

Current Rating: 10 A

Mounting Style: Rack Mount

Voltage Rating: 250 VAC

Leakage Current: 370 uA

Termination Style: Push In

Operating Frequency: 0 Hz to 60 Hz

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
