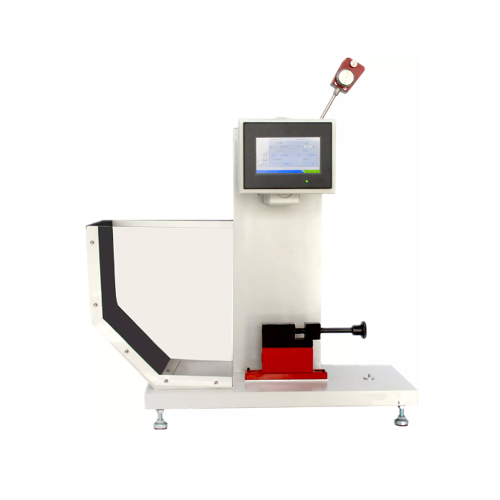

Samyon SYUD-5.5 Cantilever Beam Impact Testing Machine (335mm)

Product Application

It is mainly used for the determination of impact toughness of non-metallic materials such as rigid plastics, reinforced nylon, FRP, ceramics, cast stone, and electrical insulating materials. Ideal test equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments, and professional manufacturers' laboratories.

Technical Parameters

Impact speed: 3.5m/s

Pendulum energy: 2.75J; 5.5J

Pendulum angle: 150°

Strike center distance: 335mm

Minimum resolution: 0.001J

Distance from the impact blade to the upper jaw: 22mm ± 0.2mm

Blade radius: R=0.8mm±0.2mm

Energy loss: 1.0J <0.02J; 2.75J <0.03J; 5.5J <0.03J

Instrument size: length 830mm width 350mm height 850mm

Power source: 100VA 220VAC 50HZ
