Product Application

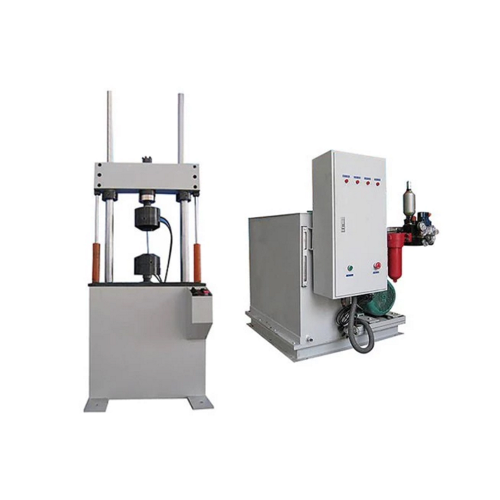

Electro-hydraulic servo dynamic and static universal testing machine is produced according to the dynamic servo test technology, and utilizes the design methods of unitization, standardization and modularization, which enhance the stability and reliability of the system. The machine is mainly used for the dynamic and static mechanics performance tests to material and parts, equipped with corresponding accessories, it can do tensile, compression, low cycle and high cycle, crack growth tests and other mechanics tests for various kinds of materials, and it widely used in the fields of aviation and aerospace, ship-making and military industries.
Parameter:
Max. force: 50kN
Indication accuracy: Within 2%-100%, each point is ±1.0%
Displacement accuracy: ±0.5%FS
Frequency Range(Hz): 0.01-50 Import controller 0.01-100
Number of columns: 2
Hydraulic forced Maximum distance between hydraulic forced grips(mm): 700
Effective distance between columns(mm): 530
Column diameter(mm): 70
Actuator rod diameter / plug diameter(mm): 70/100
Pump station total flow (L/min): 36
Pump station pressure(Mpa): 21
Pump station total power(kW): 15
Power supply: 380V, AC
