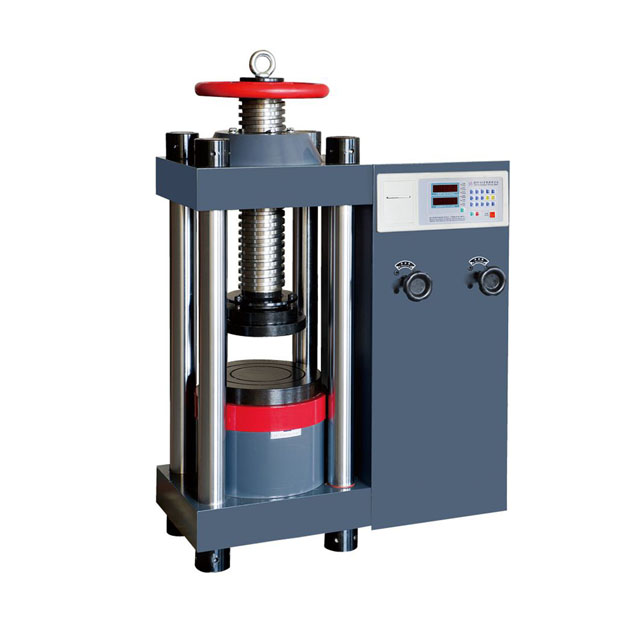

Main Function and Usage
1. It is mainly used in the testing of compression strength of the concrete.
2. Control Method of Testing Rate: Manual Control
Main Specifications and Technical Parameter
Maximum Testing Force: 2000kN
Measure Range of Testing Force: 4%~100%FS
Relative Accuracy of Value Display of Testing Force: ≤±1%
Adjustment method of Lead Screw: Manual
Top and Bottom Pressure Plate Dimension (mm)): Φ225, Φ300
Max.Space of Top and Bottom Pressure Plate(mm): 320
Max.Piston Stroke(mm): 30
Piston Diameter(mm): Φ250
Rated Pressure of the Hydraulic Pump(Amp): 40
Source Power(kW): Three phase 0.75
Overall Dimension(L*W*H)(mm): 800×500×1200
Weight (kg): 750
