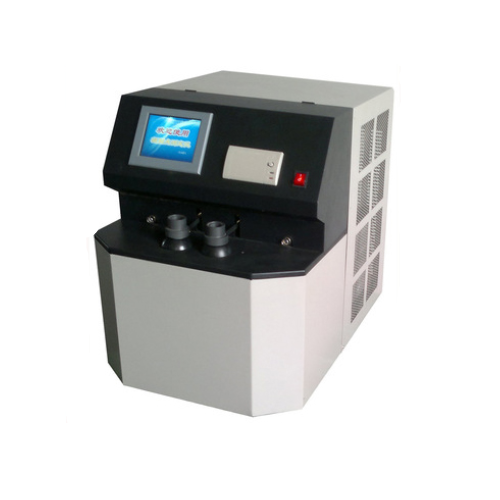

Samyon SY-510Z-2 Automatic Solidifying Point & Pour Point Tester (-30℃~50℃)

I.Product Description

1. It adopts high performance SCM technology as the control system. It can do tests and print the result automatically.

2. Spectrum measurement. High sensitivity.

3. Man-machine dialog menu. English display.

4. Double unit sample measurement. It can do two samples at a time.

II. Main technical specifications

1. Applicable oils: The oils with solidifying point at -30℃~50℃

2. Temperature range: -45℃~+100℃

3. Resolution: 0.1℃

4. Temperature sensor: Imported Pt 100, stainless steel probe. Built-in temperature calibration.

5. Heating mode: Electric heating unit. Maximum power 500 W. Controllable.

6. Slopping way: Automatic. The angle is digitally controlled.

7. Measuring mode: Spectrum measurement

8. Cooling system: Imported compressor

9. Display: 5.6 inch colored touch LCD screen.

10.Temperature calibration: Automatic and programmable.

11. Date saving: 100 groups of test results

12. Power supply: AC220V, 50Hz, maximum power consumption 1000W

13. Working ambient temperature: 10℃~40℃.

14. Storing ambient temperature: 0℃~50℃.

15. Dimension: 460mm×360mm×470mm

16. Net weight: 26kg
