I. Main technical features
1. Functions: Automatic/manual, constant speed control, point measuring/continuously measuring, automatic depth correction.
2. High automation. The constant speed control can meet Class A in standard DZ/T 0196.8-1997.
3. Automatically break after outage. Automatic stop protection when depth mutation occurs.
4. It has automatic break function when using hand-cranking. Humanized.
5. LCD display. It shows information in real time.
II. Main technical specifications

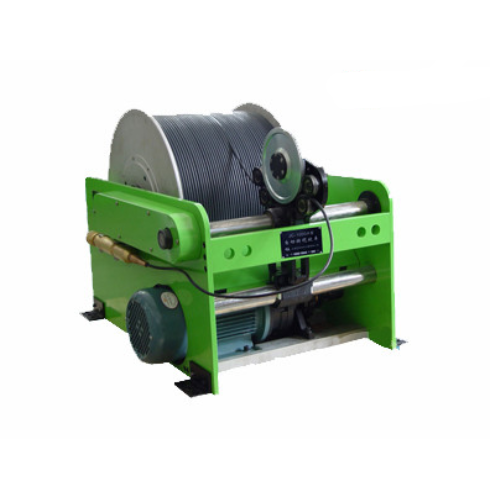

1. JC-1000A Automatic Winch
(1) Speed range： （0～30）m/min
(2) Depth range： （0～1000）m
(3) Control mode： JCK-1 Winch Controller
(4) Working temperature： （-10～70）℃
(5) Power supply： AC（220±10%）V，50Hz
(6) Motor power： 1100W
(7) Net weight： 110Kg（cable is not included）
(8) Dimension： 860 mm×600 mm×700 mm
(9) Cable： 1000m（Diameter:6.5mm）
2. JCK-1 Winch Controller
(1) Speed range： （0～30）m/min. Automatic or manual.
(2) Constant speed range： （0.5～20）m/min. Bias is ±5%
(3) Depth range： （0～9999.99）m，bias ≤±0.4‰
(4) Control mode： Automatic, manual and verification
(5) Control direction： Up and down.
(6) Measuring mode： Point or continuous.
(7) Signal： RS232 or pulse signal.
(8) Working temperature： （-10～55）℃
(9) Power supply： AC220V±10%，50Hz
