Applicable scope:
Used to control the construction quality and schedule: to evaluate the influence of concrete transportation, pumping, pouring, compaction and maintenance to cover strength.
Decide the appropriate time to dismantle templates, to add load, and to do the hot and humid maintenance in the construction.
Test the concrete strength of all kinds of existing buildings under 80 Mpa, to evaluate compressive strength and determine the actual component strength.
Technical standard:
CECS69: 2011 : Technical specification for test of concrete strength by pullout method
TB/T2298.1-91 Concrete strength Pre-burring and pulling-out test method
TB/T2298.2-91 Concrete strength Post-install and pulling-out test method
DB/T29-237-2016: Technical Specification for Inspection of Concrete Strength by Pull-out Post-insert Method.

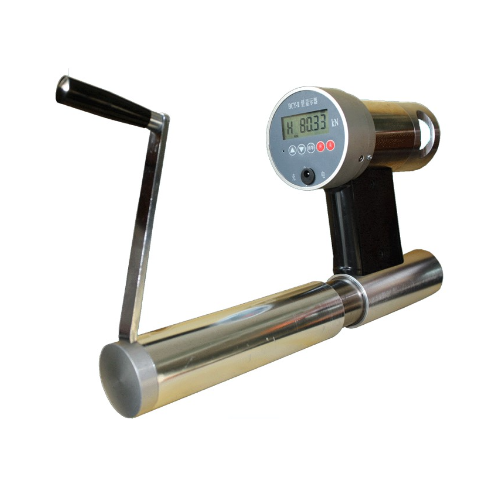

Technical parameters:
Allowed maximum pullout power:60 + 10% kN
Work environment temperature: -10 ~ 60
Work cylinder piston effective area: 25.13 cm2
Work rod piston stroke: 4 mm
Compressive strength range: 5 ~ 80 Mpa (cast-in-place method)
5 ~ 80 Mpa (post-install method)
Pullout tester display error: +/- 2% F.S
Weight: 5kg
Driller and cutter speed:9500 r/min
