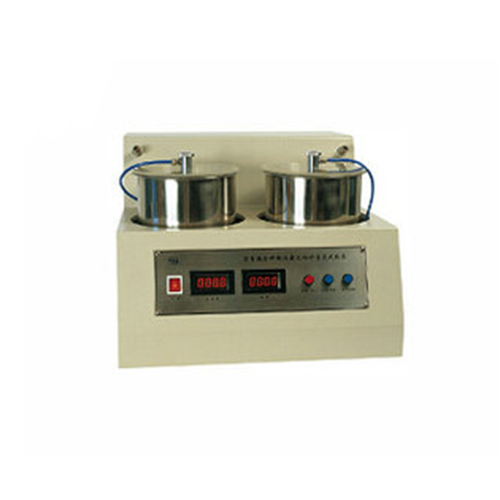

Samyon 0711A Bituminous Mixtures Theoretical Maximum Specific Gravity Tester (160W)

I. Main technical features

1. It adopts single chip machine technology to vacuumize, shake, fill air and relieve pressure automatically.

2. Equipped with a high-accuracy absolute pressure sensor, the negative pressure can reach 3.7 kPa±0.3 kPa.

3. The working status of the vacuum pump can be reflected by a vacuum meter.

4. It equips a water buffer device to prevent the water in the negative pressure container from flowing into the vacuum pump.

5. It can determine two samples at the same time.Test efficiency is high.The structure is reasonably designed. It is easy to use.

II. Main technical specifications

1. Power supply： AC(220±10%)V, 50Hz.

2. Volume of vessel： 4000ml×2

3. Power of vacuum pump： 160W

4. Negative pressure： 3.7 kPa（27.75mmHg）. Allowable bias is ±0.3 kPa.

5. Power of shaking machine： 30W

6. Dimension： 510mm×520mm×380mm

III. Optional accessory

1. Constant temperature water bath： HWY-1 Low-temperature water bath
