Rotronic TF520 Temperature Transmitters (-100…200 °C) | EMIN.CO.ID

Other Temperature Sensor
Rotronic TF520 Temperature Transmitters (-100…200 °C)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

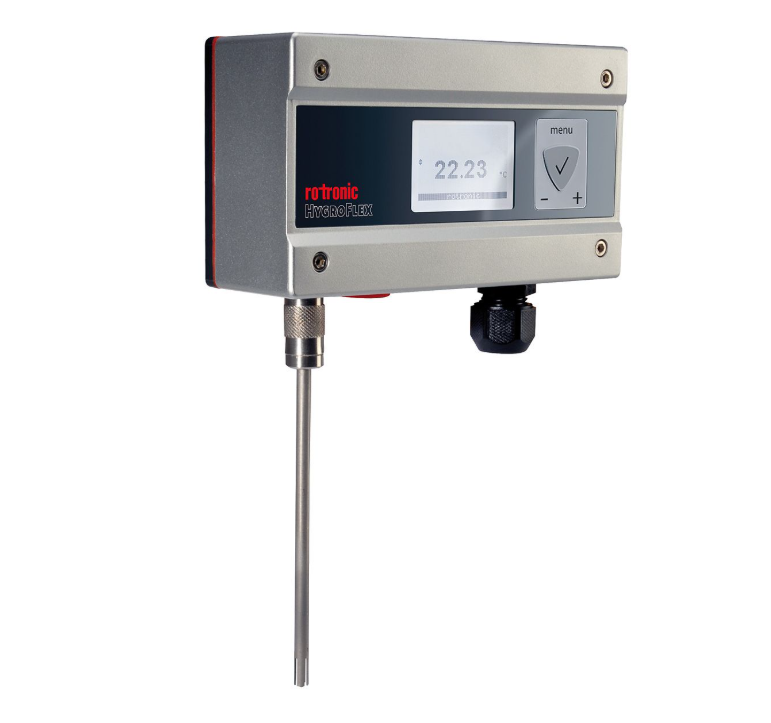

Product image

Rotronic TF520 Temperature Transmitters (-100…200 °C)

ManufacturerRotronic(View more products from this manufacturer)

ModelTF520

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

General

Parameter: Temperature

Housing material: ABS

Protection: IP65

Dimensions: 129 × 72 × 45 mm

Weight: 220 g

Probe connection: 4-pin Binder, threaded coupling

Display/Operation optional:

LCD, 1 or 2 decimals with backlight

Menu navigation, 4 keys

Electrical connections: Connections: screw terminals inside

Cable gland: M16

Power supply: 10…28 VDC

Current consumption: <20 mA

Range of application / Storage conditions:

-40…60 °C / -10…60 °C (with LCD), 0…100 %rh

Temperature scaling: Max. -100…200 °C

Firmware update: Via HygroSoft software

Service interface: UART service interface (Universal Asynchronous Receiver Transmitter)

CE/EMC compatibility: EMC Directive 2014/30/EU

Fire protection class: Corresponds to UL94-HB

Analog output

Number: 1

Current: 4…20 mA

Voltage: N/A

Permissible load: ≤500 Ω

Datasheet

User manual
