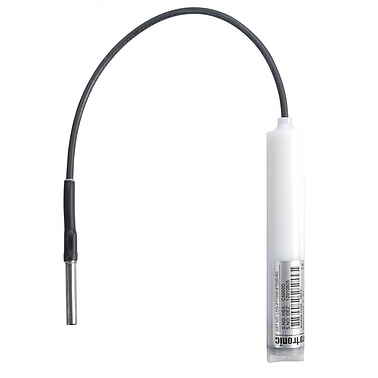

Wireless temperature data logger (PT1000).
Remote sensor with 30 cm cable standard version (433.92 MHz).
Applications:
Phamaceutical and food industries, meteorology, environmental engineering, museums/glass cabinets, monitoring of storerooms, mechanical engineering, chemical industry, research and development
Features:
• PT1000 remote probe with 30 cm cable
• Accuracy: ± 0.1 °C at 0 °C
• Radio frequency: 433.92 MHz for best penetration through brickwork and walls
• The use of the frequency 433.92 MHz is not permitted in the USA
• High storage capacity: up to 300,000 measured values with serial number, time and date
• Flash memory for data security in the case of power failures
• Long-term recording up to 6 years without battery replacement possible
• Transmission distance with USB/LAN wireless adapter: up to 300 m (free field)
• Data security: PIN (for activation and data access)
• Temperature application range: -40 to + 85 °C
• Plastic housing, white, IP69 (submersible)
PROBE TYPE: Pt-1000
OPERATING RANGE: -40…85 °C / 0…100 %rh
ACCURACY AT 23 ±5 °C: ± 0.1 K at 0 °C
MEASURING RANGE WITH INTEGRATED PROBE: -40…85 °C / 0…100 %rh
POWER CONSUMPTION: Lithium (Li-SOCl2) battery 2400 mAh
TEMPERATURE SENSOR: Pt1000-cablesensor with brass cap Ø 5 mm
MEMORY SIZE: 2,048 KB of approximately 500,000 readings, non-volatile, even during a power outage
EXPLOITATION SOFTWARE: ROTRONIC HW4
DATA LOGGING: 300’000 measured values with serial number, time and date
USER INFORMATION: from Software HW4 (devicemanager)
DATA PROCESSING VIA HW4: Yes
DEVICE PROTECTION BY PASSWORD: Yes
CHOICE OF BATTERY / RECHARGEABLE BATTERY: Lithium (Li-SOCl2) Battery 2400 mAh (Exchangeable)
COMMUNICATION INTERFACES: LAN interface / USB dongle / GPRS logger
ENCLOSURE MATERIAL: POM
IP PROTECTION RATING: IP69 (submersible)
FDA/GAMP COMPATIBILITY: FDA 21 CFR Part 11 and GAMP compatible
DIMENSIONS: 140 x Ø 20 mm
