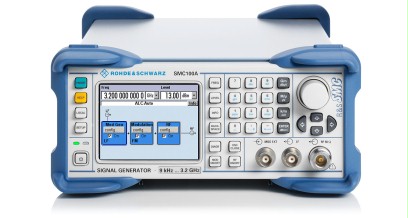

Rohde&Schwarz SMC100A+SMC-B101 Signal Generator (9 kHz~1.1GHz)

Manufacturer: Rohde&Schwarz

Model : SMC100A+SMC-B101

Warranty : 12 months

Frequency range: 9 kHz to 1.1GHz

Power supply

- AC input voltage range: 100 V to 240 V; ±10 %

- AC supply frequency: 50 Hz to 60 Hz, –5 %/+10 %

- Max. input current: 1.2 A (100 V) to 0.4 A (240 V)

- Power consumption: 45 W

Resolution of setting: 0.001 Hz

Dwell time setting range: 10 ms to 10 s

Max. output power: +13 dBm(f = 200 kHz to 3.2 GHz); >+17 dBm (f ≥500 kH)

Level error:(f = 200 kHz to 3.2 GHz)<0.9 dB

Back-feed

1 MHz ≤ f ≤ 1 GHz:50 W

1 GHz ≤ f ≤ 2 GHz :25 W

2 GHz ≤ f ≤ 3.2 GHz :10 W

Maximum permissible DC voltage:50 V

Spectral purity

Nonharmonics : <-60 dBc (typ. -72 dBc)

SSB phase noise: <-105 dBc (typ. -111 dBc)

Wideband noise: <-138 dBc (typ. -146 dBc)

AM depth: 0 % to 100 %

Rise/fall time :<500 ns (typ. 100 ns)

Minimum pulse width : 1 μs

ON/OFF ratio : >80 dB

Peripherals :USB

Weight: 3.9 kg (8.6 lb)

Dimensions (WxHxD): 236 mm × 112 mm × 368 mm

Scope of Delivery: Power Cable, Quick Start Guide.

Datasheet
