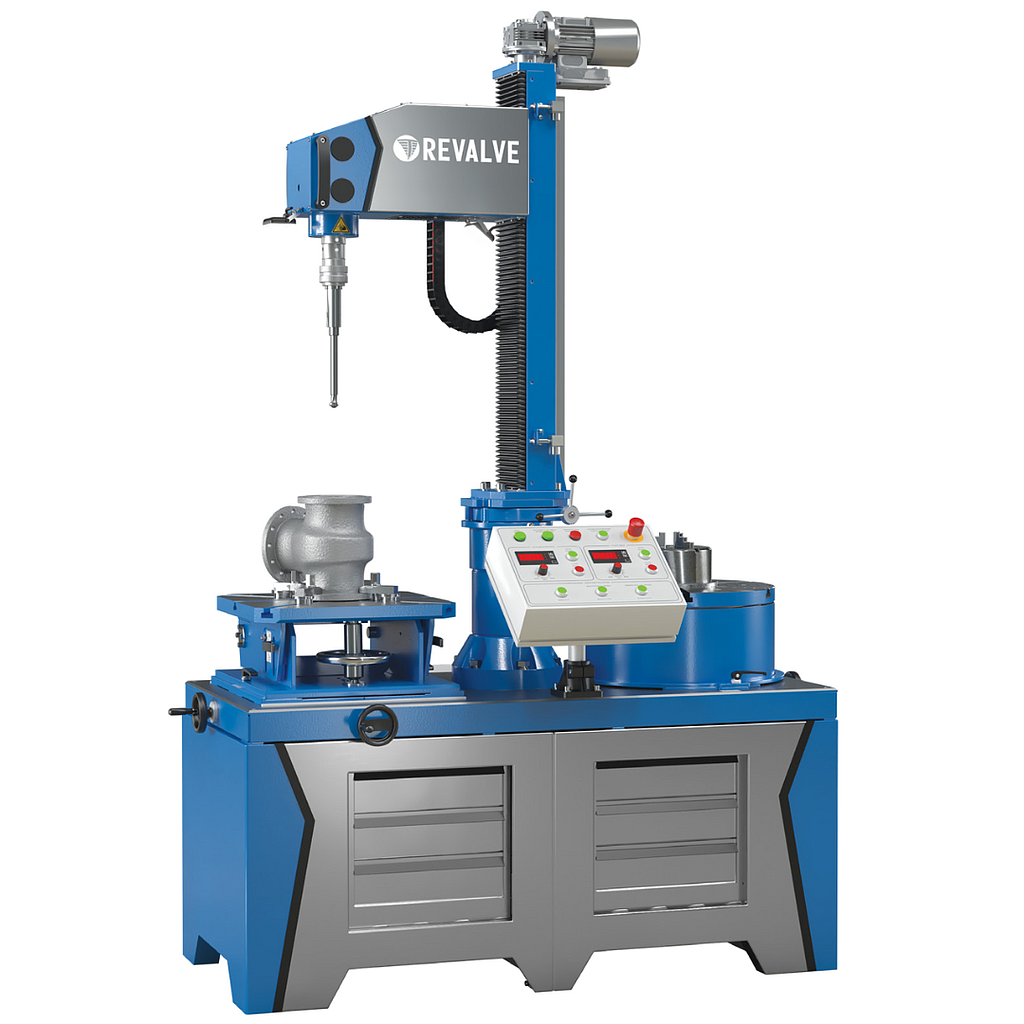

Specifications:
Valve range, DN, mm (″): 15…300(½...12)
Maximum diameter of the mounted valve flange (″): 500 (19)
Maximum face-to-face length of the mounted valve(″): 750 (30)
Maximum weight of the mounted part: 500
Dimensions of the table working surface(″): 500х500 / Ø 500 (19x19 / Ø19)
Tilt angle of the table: 0…12 / ˗degrees
Spindle rotation speed adjustment: stepless
Spindle rotation speed: 10…240 rpm
Machined surface roughness: 0,2…0,4μm
Power consumption: 2,2 kW
Power supply: 400/50 V/Hz
Overall dimensions (LхWхH)(″): 1710х1180х2430 (67х46х96) mm
Weight (with tooling package): 1200kg
