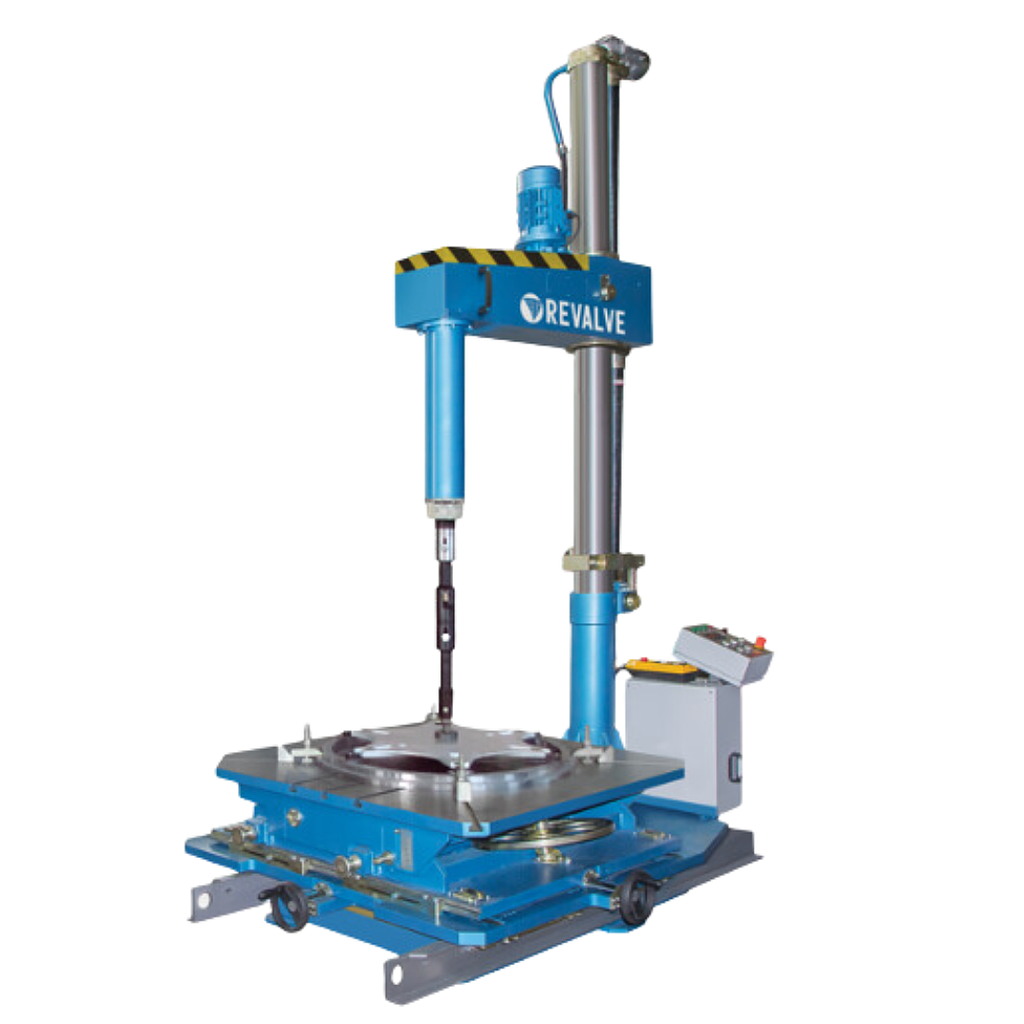

Specifications:
Valve range, DN, mm (″): 300…1000 (12...40)
Maximum diameter of the mounted valve flange (″): 1255 (50)mm
Maximum face-to-face length of the mounted valve(″): 1750 (69)mm
Maximum weight of the mounted part: 2500kg
Dimensions of the table working surface(″): 1200х1200 (48x48)mm
Tilt angle of the table: 0…12 degrees
Spindle rotation speed adjustment: stepless
Spindle rotation speed: 10…150rpm
Machined surface roughness: 0,2…0,4μm
Power consumption: 2,0 kW
Power supply: 400/50 V/Hz
Overall dimensions (LхWхH)(″): 2175х1550х3520 (86x61x138)mm
Weight (with tooling package): 3100kg
