Width: mm
Height: mm
Length: mm
Fall Time: 40 ns
Rise Time: 50 ns
Output Type: Photo IC
Mounting Style: Through Hole
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel

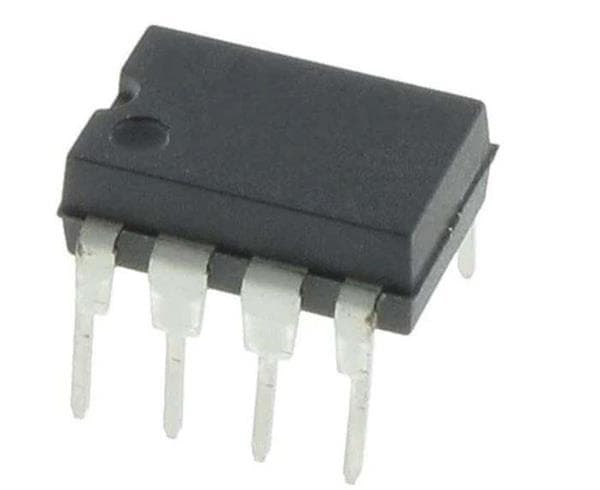

Description/Function: Optically coupled isolators
If - Forward Current: 10 mA
Vf - Forward Voltage: 1.56 V
Vr - Reverse Voltage: 5 V
Pd - Power Dissipation: 45 mW, 250 mW
Propagation Delay - Max: 175 ns
Operating Supply Voltage: 15 V to 30 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Maximum Continuous Output Current: 2.5 A
