Dimension:900(L) x 670(W) x 800(H) m/m
Power:220V 50/60HZ,Net Weight:115Kgs
Feeding Speed:0 - 3 m (Adjustable)
RPM of Spindle:4500
HP:3/4 HP
Min. Lead Height:1.0mm Min
MAX.PCB Working Size:500mm(L) x 280mm(W)
FEATURES:

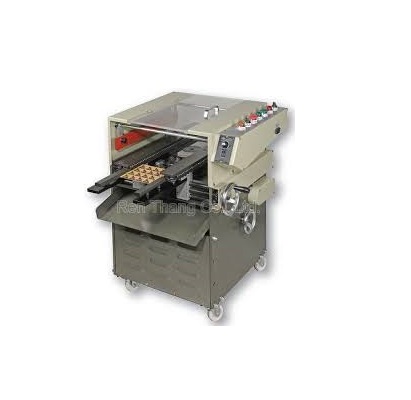

Best Selection for medium of high volume production. This model is designed to trim the extra long leads automatically and efficiently on the PCB that components inserted and soldered.
A pair of conveyor chain is equipped in the model in which clamp and deliver the PCB to the blade turning in high speed for trimming. Warp prevention device is equipped to ensure no damage on boards.
Expandable in function and working independently- The model can be optional connecting in line with wave soldering machine by Connection Bridge and operates automatically.
The Tungsten Carbide Blade is excluded in the machine.
