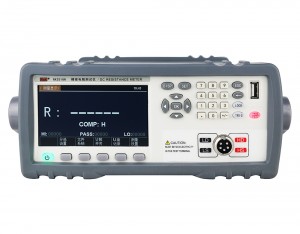

Measuring Range: 1μΩ～2MΩ
Test Accuracy: 0.05%
Maximum Test Current: 1A
Display
Display: 24 Bit Color, Resolution 480 * 272 True Color IPS LCD
Number Of Readings: Four Half Digit Display Resistance Value
Measuring Function
Resistance Measurement Time
Fast Speed: 7ms
Slow: 40ms
Temperature Measurement Time: 100ms
Test Side Configuration: Four Terminal
Statistical Function: Quantity Statistics Of Upper / Lower Qualified Products
Save Test Parameters: 5 Groups
Temperature Measurement
Measurement Parameters: PT1000: Accuracy 0.1 ℃
Display Range: -10℃-99.9℃
Comparator
Signal Output: HI/PASS1/PASS2/PASS3/LO/FAIL
Sound Of News: Pass / Fail / Close
Limit Setting Mode: Third Gear; Absolute Value Upper / Lower Limit; Percentage Upper / Lower Limit + Nominal Value
Other Parameters
Interface: USB HOST/RS232/HANDLER/RS485(Optional)
Working Environment: Temperature 0 ℃～ 40 ℃ Humidity < 80% RH
Size: 361×107×264mm
Weight: 3.6kg
Accessories: Four Terminal Kelvin Test Clip Temperature Probe, Power Line
