Color: Black
Pitch: 1.8 mm (0.071 in)
Width: 16.45 mm
Gender: Receptacle (Female)
Height: 7.2 mm
Length: 11.575 mm
Application: Signal
Row Spacing: 5.9 mm
Unit Weight: 822 mg
Contact Type: Socket
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 12 VDC
Wire Gauge Max: 24 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 24 AWG to 26 AWG
Lock Mate Feature: On the terminal
Termination Style: Crimp
Flammability Rating: UL 94 HB
Number of Positions: 6 Position

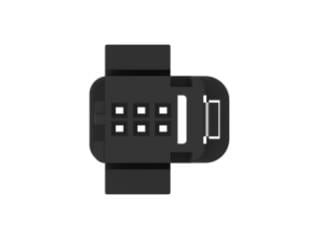

Description/Function: Nano MQS, Housing for Female Terminals
Maximum Operating Temperature: + 130 C
Minimum Operating Temperature: - 40 C
