Metrological parameters
-Maximum capacity [Max]: 52g
-Minimum load: 1mg
-Readability [d]: 0.01 mg
-Verification unit [e]: 1mg
-Tare range: -52 g
-Standard repeatability [5% Max]: 0.007 mg
-Standard repeatability [Max]: 0.01 mg
-Standard minimum weight (USP): 14 mg
-Standard minimum weight (U=1%, k=2): 1.4 mg
-Permissible repeatability [5% Max]: 0.01 mg
-Permissible repeatability [Max]: 0.02 mg
-Linearity: ±0.03mg
- Eccentric load deviation: 0.03mg
-Stabilization time: 5 s (30 s for filters)
-Adjustment: internal (automatic)
-OIML Class: -
Physical parameters
-Leveling system: semi-automatic - LevelSENSING
-Display: 10″ graphic colour touchscreen
-Weighing chamber door: manual

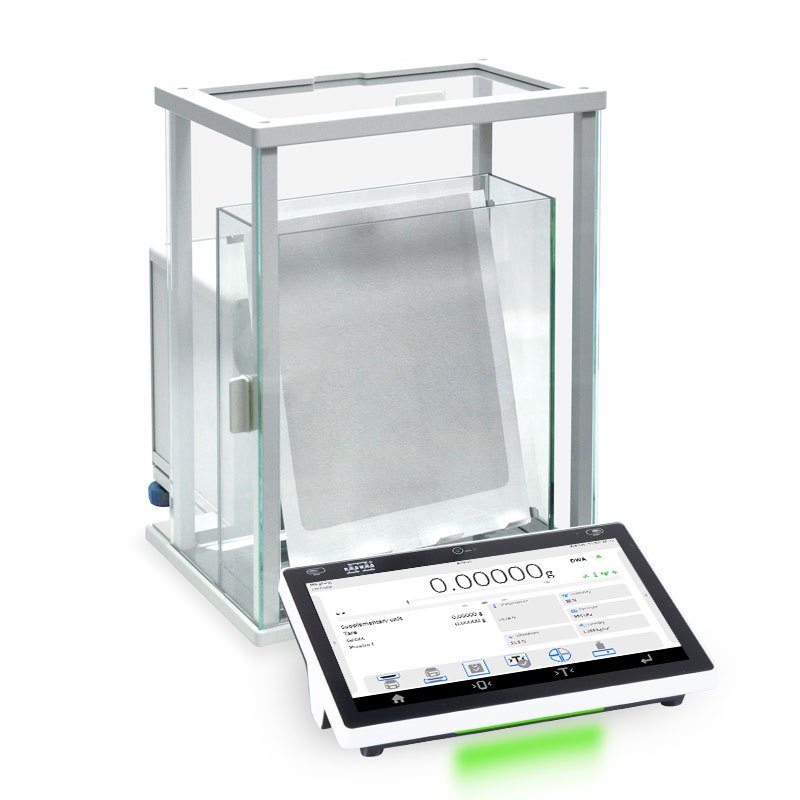

-Delivery components: Analytical Balance, weighing pan, weighing pan for filters, weighing pan shield, centring ring, bottom cover, brush, fabric dust cover, power supply.
-Weighing pan dimensions: 210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option) - Net weight: 12.7 kg
- Gross weight: 23.5 kg
- Protection class: IP 43
Communication interface
-Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
-Electrical parameters: Power supply
Adapter: 100 – 240V AC 50/60Hz 0.6A; 15V DC 2.4A
Balance: 12 – 15V DC 1.1A max
Operating temperature: +10 — +50 °C
