General:
Operating Temperature: -10~50°C/+14~+122°F
Operating Humidity: 30%RH~90%RH
Storage Temperature: -20~60°C/+4~+140°F
Power Adapter: Input: 110VAC~240V AC, Output: 12V DC 2A
Power Supply: DC 5V input
Current Consume: 800mA Max
Battery Capacity: 3800mAh Li-ion Battery
A Single Charge Work Time: 3 Hours
Charge Time: 5 Hours - 7 Hours
Waterproof: P66 (Only the camera head installed and the metal frame with cable reel are waterproof)
MEAS.: 37*35*22CM
Weight: Approx 5Kg (Slight different from different length of cable)
Camera:
Sensor: 1/4" CMOS
Resolution: 640*480
TV-Line: 600TVL
View Angle: 60°
Focus Distance: 5cm (approx)
Depth Of Field: 100cm (approx)
Camera Size: Φ12.8mm×12mm (Main body)
Camera Length: 135mm
Front Lens: Sapphire
Shell Material: 304# Stainless Steel
Lighting: Built-in 6×LED (White)
LED Driver: 5 levels
Water-resistant: 10m water (Only when camera head is fixed on Cable)
5'' Monitor:
Screen: 5 inch high-definition color LCD
Resolution: 800X3(RGB)X480
Mirror and Flip: Normal, 180° flip, mirror, mirror & 180° flip
Image Zoom: 1~3 times (1.0X, 1.5X, 2.0X)
Image/Video Resolution: 800*480
External Memory: Micro SD card (not included, support Max. 32G)
Play Back: Photo and Video
Language: English, Deutsch, Français, Nederlands, Simplified Chinese, Traditional Chinese, Japanese, Español, Pусский
Image Format: .JPG
Video Format: .AVI
Size: 157*100*36mm
Color: Black + Orange
Cable:
Cable Diameter: Φ5.3mm or Φ4.8mm
Cable Color: 5.3mm in red, 4.8mm in blue
Cable Length: 5/10/20/30 meter (Selectable)
Product Description

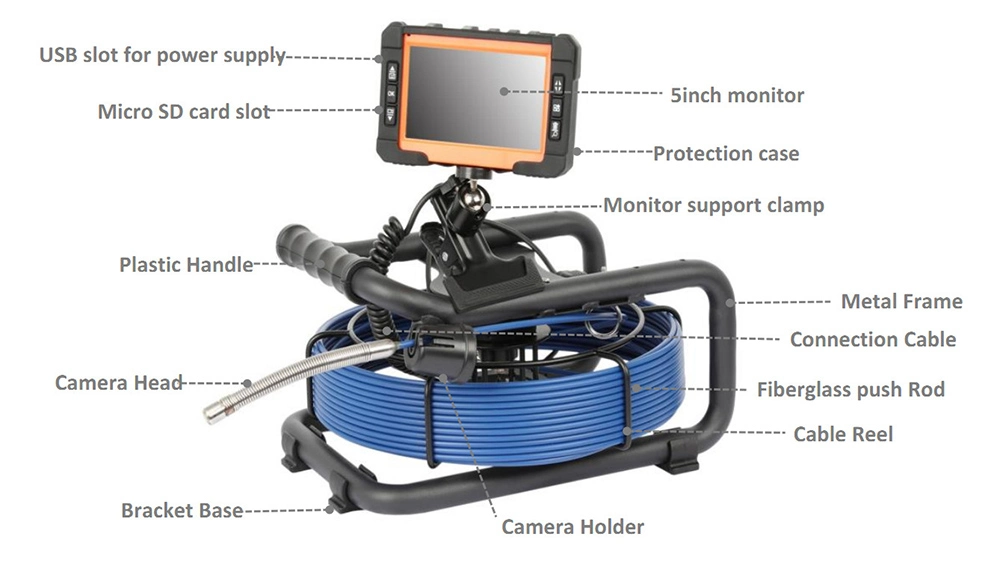

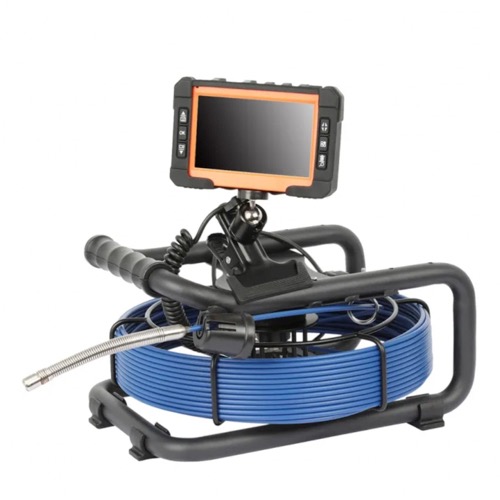

This pipe inspection camera system is designed as a real-time inspection camera and to unveil the internal objects and/or structures with the illumination of the highlight LEDs, it is specially designed for pipeline, sewer, drain, duct, chimney, plumbing, building, swimming pool, milk pipes, water mains, cable pipes, central air conditioning, pipes ventilation systems and other plumbing related sites, and many more where a pipe inspection camera system is required.
This system is suitable for pipes with inner diameter at 15mm-200mm (1/2''-4''). Ability to go through 90°bends in pipe with inner diameter at 50mm(for 21mm camera with 5.3mm push rod), 32mm(for 12.8mm camera with 4.8mm push rod).
