CAMERA PROBE:
Image Sensor: CMOS
Camera Direction: Side view 90°
Diameter of Insertion Tube: 9.0mm
Tube Type: Stainless steel
Insertion Length: 300mm
Tube Material: Stainless Steel
Light Source: 2 high intensity LEDs for 1.5m lighting distance
Effective Pixels: 768x494 (NTSC), 752x582 (PAL)
Mains Battery Charge: Yes
Depth of Field (DOF): 4cm-infinite
Field of View (FOV): 55°
Waterproof Level: IP67 (Probe only)
Battery Capacity: 1500mAh
Work Time: 4 hours
Charge Time: 5 hours
Current Consumption: 260mA
Operation Temperature: -10°~+60°
MONITOR:
Product Dimension: 115.6mm x 74.38mm x 1.43mm
Screen Size: 5'' TFT-LCD
Display Resolution: 800(R.G.B.) x 480 dot
Video Signal Standard: NTSC / PAL
Modulation Mode: FM
Receive Sensitivity: -85dBm (module)
Built-in Li-Battery Capacity: 3300mAh / 5V
Charge Time: 4.5 hours
Work Time: 4.5 hours
Standby Time: 5 hours
Consumption Current: 500mA (MAX.)
Memory: Micro SD Card
Picture Format: .JPG
Video Format: .AVI
Picture/Video Resolution: 800 x 480
Frame Rate: 30 Frame/S
Operation Temperature: 0~+45°C
Storage Temperature: -20~+60°C
Product Description

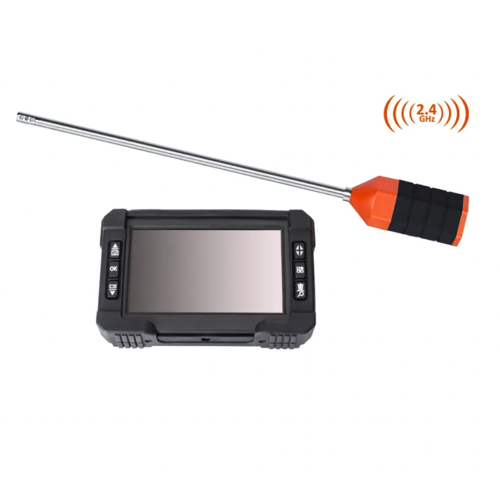

Side view rigid inspection camera with 5inch monitor
This is the new side view inspection camera, the tube is made of wearable stainless steel with optional diameter 9.0mm. The camera, the 2 high intensity LEDs and the stainless steel tube are integrated perfectly to enhance the insertion probe water, gas, desiel and oil proof, the waterproof level is up to IP67.
Applications:
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Construction, property managers and contractors
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Avaiation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verfication of standards protocols in small and tight areas.
Building appraisal applications
