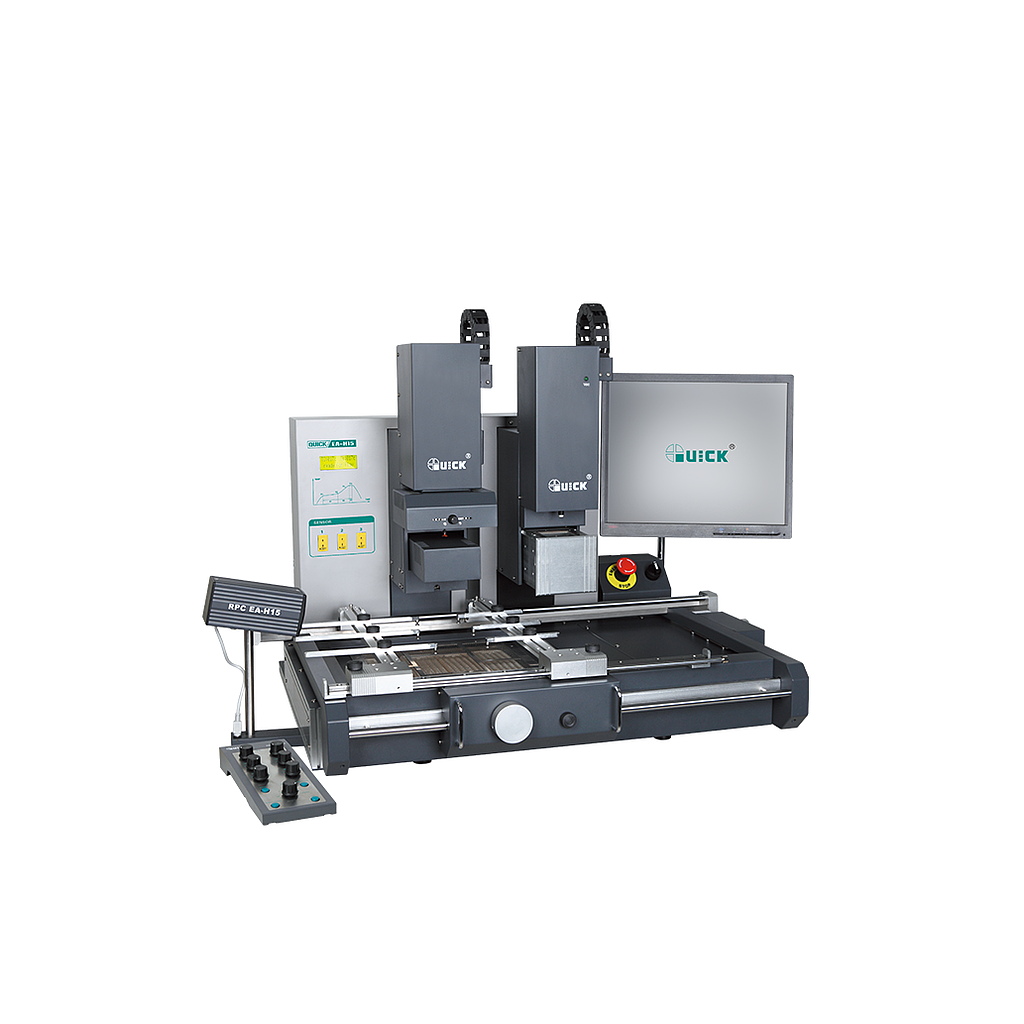

QUICK QUICK EA-H15 Infrared BGA Rework System (220V AC, 50 Hz)

Total power: 2800 W (Max)

Power supply: 220V AC 50 Hz

Bottom preheating power

400 W*4= 1600 W (dark infrared emitter)

400 W*6 = 2400 W (high-resolution infrared heating tube optional)

Top preheating power: 120W*6 = 720 W (infrared heating tube, wavelength: about 2-8 μm)

Top heater size range: 20 – 60 mm (X, Y directions adjustable)

Bottom radiation preheater size: 290* 290 mm

Max. circuit board size: 390* 420 mm

Communication: USB (can be connected with PC)

Temperature measuring sensor: Non-contact infrared

Weight: About 90 kg

Overall dimensions: 850 * 720 *730 mm

PL precision placement system

Camera: 36* 12 times amplification; 24V/300mA; horizontal definition 500 lines; PAL format

Prism size: 50 mm* 50 mm

Reworked BGA size: 2x2 mm – 60x60 mm

Camera output signal: Video signal

RPC Reflow Soldering Monitoring Camera

Camera: 36*12 times amplification

Horizontal definition 500 lines; PAL format

LED auxiliary lighting

CONTROL BOX: Multi-functional operation keyboard

Acquisition card: Four-channel analog video input

VIDEO SOFT: Professional video acquisition software

● IR infrared reflow soldering system

The infrared temperature sensor directly detects the surface temperature of the BGA to achieve true closed-loop control, ensuring an accurate temperature process window and uniform heat distribution.

● PL precise alignment system

The high-definition optical chromatic aberration prism alignment system is used to align the solder ball and pad by overlapping; scientific and precise, simple control, and easy to mount and release.

● RPC reflow soldering camera

The melting process of the BGA solder ball can be observed from multiple angles from the lateral bearing, providing critical assistance in capturing accurate and reliable process curves.

● BGASOFT control software

PC is connected to record, control, and analyze the entire process flow, and generate a temperature curve to meet the process requirements of the modern electronics industry.

● CONTROL BOX operation keyboard

Multi-functional operation keyboard makes continuous rework more efficient and simple.
