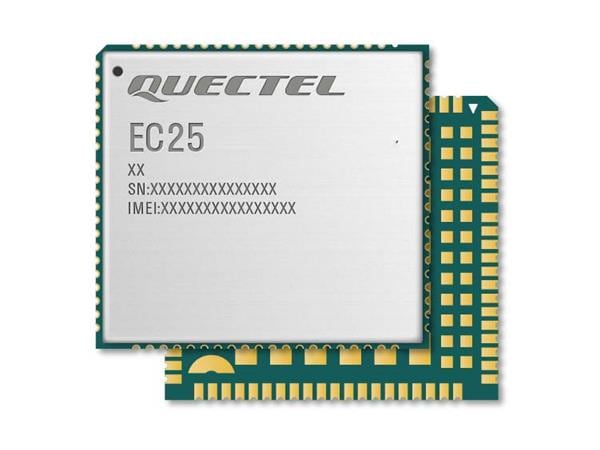

Quectel EC25EMGA-512-SGNS GNSS, LTE Cat 4 Cat 4 + 3G + 2G, 4Gbit ROM+2Gbit RAM, Support B5, EMEA, Southeast Asia

Data Rate: 50 Mb/s, 150 Mb/s

Frequency: 850 MHz, 900 MHz, 1.8 GHz, 1.9 GHz

Dimensions: 32 mm x 29 mm x 2.4 mm

Output Power: 33 dBm

Interface Type: ADC, I2C, PCM, SDIO, SGMII, UART, USB 2.0

Supply Voltage - Max: 4.3 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: External

Protocol - GPS, GLONASS: GNSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: LTE Cat 4
