Gain: 24 dB
Technology: GaAs
Unit Weight: 5.117 g
Mounting Style: Screw

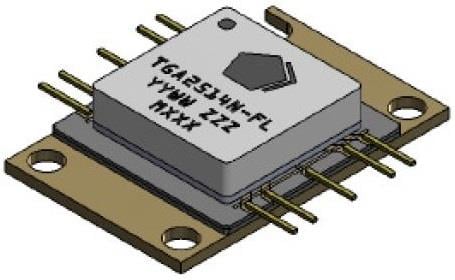

Development Kit: TGA2514N-FL_EVB
Input Return Loss: 14 dB
Number of Channels: 1 Channel
Operating Frequency: 13 GHz to 16 GHz
Pd - Power Dissipation: 33.3 W
Operating Supply Current: 2.6 A
Operating Supply Voltage: 8 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
